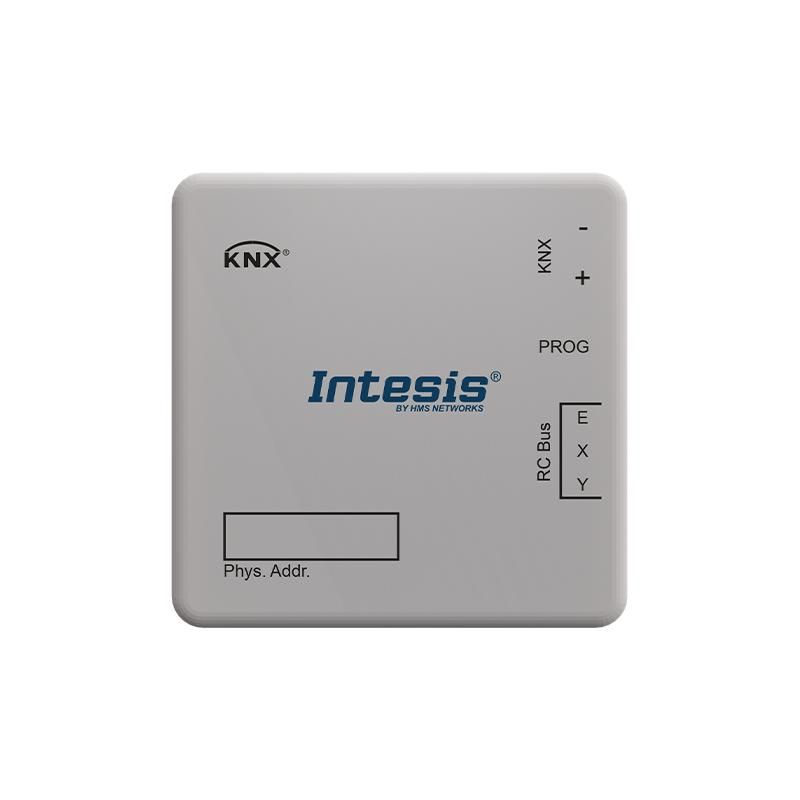

INTESIS INKNXACA016I000 Bosch Commercial and VRF systems for KNX interface - 16 units

INTESIS INKNXACA016I000 Product Description

The INTESIS INKNXACA016I000 product is an interface designed to integrate commercial air conditioning systems and VRF with the KNX bus. This solution allows complete bidirectional communication between air conditioning systems and KNX installations.

Key Features

• Control up to 16 indoor air conditioning units.
• Fast and invisible installation, without the need for external power.
• Direct connection to the KNX EIB bus and the indoor air conditioning unit.
• Compatible with various models of indoor air conditioning units; consult the list of compatible models on the manufacturer's website.

Connections and Installation

For installation, it is necessary to disconnect the main power supply of the air conditioning unit and open the front panel to access the control board. Connect the EXY connector of the INKNXACA016I000 interface to the XYE connector of the air conditioning unit control board using a 3-wire cable. Next, connect the interface to the KNX TP-1 bus (EIB).

Configuration and Management

• Use the 'Number of Indoor Units' parameter in ETS to configure the number of indoor units to manage, with a range from 1 to 64.
• Change the addresses of the internal units through the addressing section.
• License management to update the interface version.

Technical Specifications

• ABS plastic housing (UL 94 V-0) with a thickness of 2.5 mm.
• Dimensions: 71 x 71 x 27 mm.
• Weight: 42g.
• Color: White

Error Codes

The interface includes a series of error codes for diagnosing and troubleshooting, including phase errors, communication, temperature sensors, and other system specific errors.
