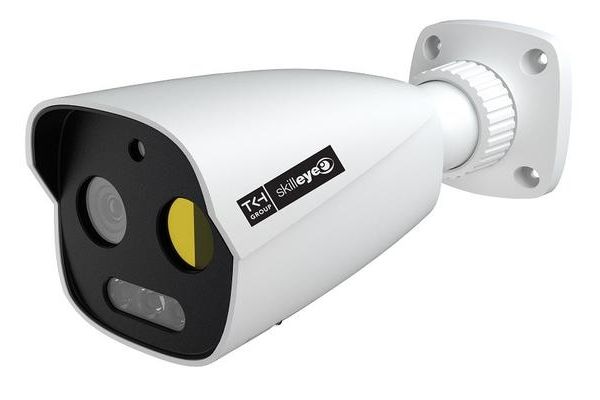

Bullet IP Thermal 384x288 pxls and Visible 5MP, WDR

SKILLEYE SEI-T7124TI-PAT-25 Bullet IP Thermal 384x288 pxls and Visible 5MP, WDR

MT Code: SKL_SEI-T7124TI-PAT-25
Manufacturer Code: SEI-T7124TI-PAT-25
Brand: SKILLEYE

TKH Skilleye Thermal and Visible Bullet Camera with Audio and Light Flash alert on alarm. Vanadium oxide uncooled thermal sensor with 384x288 pxls (8um-14um) resolution, 25mm @F1 .0 lens, FOV (HxV) 15 degreesx11.2 degrees. Visible 1/2.7 inch CMOS sensor, 5MP resolution (2592x1944 pxls), Fixed Lens 16mm @F2 .0, FOV (HxV) 19.8 degrees x 14.3 degrees, Sensitivity 0.0125 lux @F2 .0 with AGC ON or 0 lux with IR ON, 70-100 m WDR, 120 dB WDR, BLC/HLC, Defog, 2D/3D DNR. H.265 +/ H.2 compression

Data Sheet

Feature	Value	Unit of measure
Codice a barre	8000002745307
Codice Produttore	SEI-T7124TI-PAT-25
Brand	SKILLEYE
Tipo Telecamera	Bullet IP Termica e Visibile
Risoluzione Sensore Visibile	5	MP
WDR	120	dB
ICR	Presente
Portata LED IR	70-100	mt
Analisi Video	ADVANCED VCA 2.0 con Voice & Light Annunciation
Range Temperatura Termica	-20°C ~ +150°C
Accuratezza Termica	±8	°C
FOV Orizzontale Termico	15	°
FOV Orizzontale Visibile	19.8	°
Compressione Video	H.265 / H.264 / MJPEG
Streaming	Triplo Stream
Interfaccia Audio	1 In Audio, 1 Out Audio con altoparlante integrato
Interfaccia Allarmi	4 In / 4 Out
Memoria Locale	MicroSD sino a 256GB
Alimentazione	12Vdc / POE <9	W
Grado di Protezione	IP66
Custodia	Case Metallico, installazione su tre assi
Conformità NDAA	NDAA Compliant
