BWare PIR Two-Way Radio

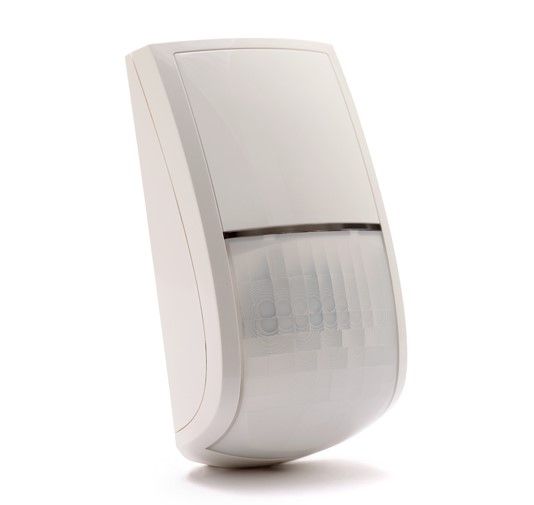

RISCO RWX515PR080A BWare PIR Two-Way Radio

MT Code: RSC_RWX515PR080A
Manufacturer Code: RWX515PR080A
Brand: RISCO

BWare™ bidirectional radio detectors are part of RISCO's new series of professional indoor detectors; you can count on a modern and elegant design and on the most advanced detection technologies.

The BWare™ sensor family is ideal for a wide range of radio and hybrid installations, a DT model is also available.

The sensors of the BWare™ family offer the flexibility to use professional sensors in any installation, whether wired, radio or hybrid, and also allows you to always maintain design uniformity in the various models.

Features

Elegant design
Availability of additional lenses for greater detection performance
Bidirectional radio protocol for uncompromising security, reduced RF emissions and remote programming and maintenance

Technical

Specifications

Pet model Mounting height: from

1.8m

to 2.5m PIR sensor with Double Element White Light Immunity

Digital signal processing
Real temperature compensation
Tamper anti-opening and anti-removal with gold-plated contacts
Model Quad G3, with AntiMask for high-risk installations. The anti-masking is made with an Active Infrared channel, which protects the sensor from trying to darken the

Frequency: 868.65

RF immunity: compliant with EN50130-4

Battery: 3V lithium battery, 2 x CR 123

Current consumption: 16 µA

Average battery life: 3 years Dimensions: 120x63x44 mm Operating temperature:

-10°C to

40°C Storage temperature

: -20°C to 60°C

Data Sheet
