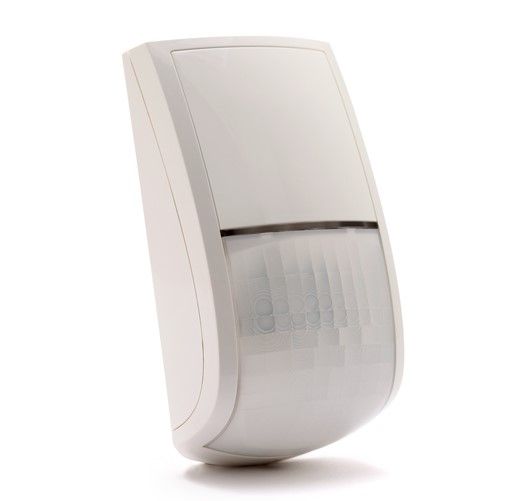

RISCO RWX515DTP80A BWare - Dual Technology Radio Bidirez Detector

Features

Elegant Design
Availability of additional lenses for greater performance in K-Band microwave detection
to minimize false alarms and active infrared anti-masking to guarantee even greater security for
radio installations Green Line™ technology to
disable the MW function to avoid unnecessary emissions inside rooms Immunity to animals up to 36 kg thanks to the
Variable Pet Threshold algorithm (Pet model

bidirectional for uncompromising safety, reduced RF emissions and remote programming and maintenance

Technical

Specifications

Type of sensor: DT AM Indoor radio Coverage: 15 m, 90° Mounting height: from
1.8 m
to 2.5; from 1.8 to 2.1 m in Pet models
PIR Sensor with Double Element
K-Band Microwave
Immunity to White Light
Digital signal processing Real temperature compensation patented Tamper anti-opening
and anti-removal

gold-plated contacts

Frequency: 868.65 RF immunity:

compliant with EN50130-4 Battery:

3V lithium battery, 2 x CR 123 Current consumption:

16 µA on standby

Average battery life: 3 years Dimensions: 120x63x44 mm Operating temperature:

from -10°C to

40°C Storage temperature

: from -20°C to 60°C
