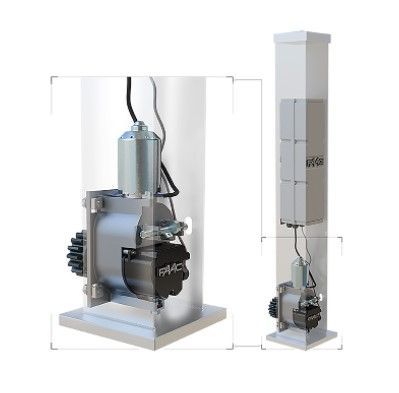

FAAC 109001 C4000I 24V Integrated Sliding Gate Motor Gear Motor

24V C4000i Integrated Sliding Gate Motor Gear Motor 24V Integrated Gear Motor Max door weight: 400 Kg Max speed: 16 m/min Type of use: Residential - Compact dimensions, perfectly integrated into the architectural context - Electronic control unit and absolute electronic encoder (patented) with obstacle reversion and window recognition functionality - Manual unlocking accessible both inside and outside the property C4000I includes: a low-voltage electromechanical actuator with E4000I electronic equipment, rack pinion, an unlocking key and mounting accessories.

TECHNICAL CHARACTERISTICS: Network supply voltage: 220-240V ~ 50/60 Hz Electric motor: 24 V Max power: 150 W Max thrust force: 125 N Sprocket: Z16 module 4 Max leaf width: 8 m Max door weight: 400 kg Max cantilever door weight: 250 kg Sash speed: 16 m/min Ambient operating temperature: -20 °C +55 °C Type of use: Residential Continuous Use Time (ROT): Continuous Degree of protection: IP30 Dimensions (LxDxH): 110 x 180 x 250 mm Weight: 3.5 kg Column dimensions: 110×110 mm minimum internal size
