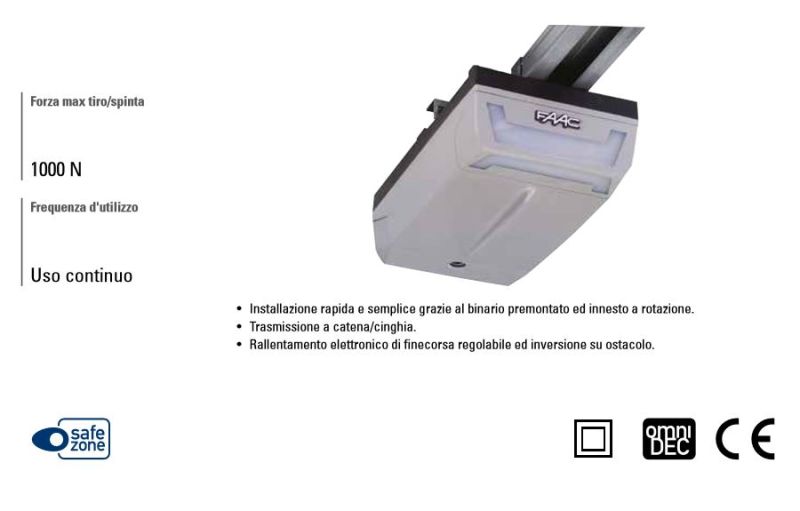

FAAC 110601 CEILING OPERATOR D1000 1000N

CEILING OPERATOR D1000 1000N

Irreversible 24V system for opening a sectional or tilting garage door. Maximum load 100 kg with a 1000 N thrust force, FAAC patented 3-step guide assembly (not included), equipped with integrated courtesy light and equipped with access to programming from outside, without the need to disassemble the automation crankcase. FAAC E1000 integrated control unit equipped with motor and encoder input and 3-pin connector for FAAC XF quick-connect receiver. Designed for the possible housing of the back-up battery kit (not included) for operation in the absence of electricity. For sale, the motor unit is sold, for proper operation, it is also necessary to purchase the tow rail and the bow if a counterweight tilt is automated. Dimensions 360 x 200 x h45 mm Weight 6.5 Kg
