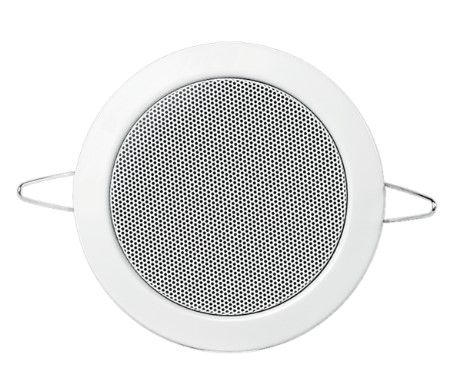

ARITECH FIRE ABT-S106 Ceiling to ceiling speaker 6W 100V

Ceiling to ceiling speaker 6W 100V. power adjustment 6/3/1.5/0.75 W. diameter 10 cm (104 mm). SPL rated power 88dB @1mt. white color. CPR EN54-24 Certificate

The S106 and S136 ceiling loudspeakers are designed for applications that require minimum dimensions with maximum sound quality. Their parameters have been carefully selected to meet operational requirements in rooms exposed to noise and high humidity. The loudspeakers of the EST-S series combine excellent acoustic parameters and elegant aesthetics while maintaining good resistance to mechanical damage and different environmental conditions. They are also distinguished by their simple and quick installation. The quality standards and audio characteristics have been confirmed through multiple tests and tests in an anechoic chamber and by means of equipment for strength and integrity checks, as well as through chambers for environmental tests against atmospheric agents and air humidity. The need to maintain the best acoustic parameters, even with easily installable fire screens, was the idea behind the design process. The S series loudspeakers ensure a balanced sound that is extremely important in the dissemination of voice messages and in the reproduction of music. The S series of loudspeakers stand out for their elegant design. The part of the diffuser, visible after installation, is galvanically protected and painted white (RAL 9003) - other colors are optionally available (RAL palette)

The entire EST-S series is equipped with a standardized mild steel fire dome and equipped with two cable rubber inputs. The special construction makes it easy to install. The diffuser is equipped with a 1 m long safety rope. Under the diffuser screen there are ceramic clamps, flame-proof cables and a thermal fuse. This solution guarantees 100% protection of the audio transmission line from any interruptions or short circuits that may occur in a fire condition. The EST-S loudspeakers have been successfully tested by rigorous tests at a temperature of 822 °C. The nominal power of the speaker is selected using the jumpers on the internal transformer. The S series speakers are equipped with a fire dome, thermal protections and are fully compliant with the EN 54-24 standard. In order to guarantee 100% compliance with the highest quality standards, we test our speakers following the most meticulous procedures that guarantee high sound emission, safety and reliability parameters. Despite the fact that our speakers are designed for maximum reliability in fire conditions, their acoustic parameters and competitive prices make them successful in any public sound distribution application
