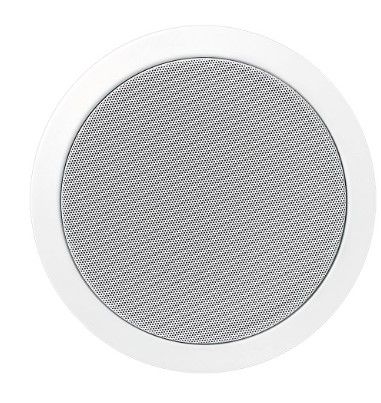

ARITECH FIRE DL-AB_06-200/T-EN54 Ceiling-to-ceiling speaker with two speakers and two transformers

Ceiling-to-ceiling speaker with two speakers and two transformers. 2x6W 100V. diameter 24 cm. white color. CPR

The DL-AB 06-200/T-EN54 is designed with two independent speakers and 100 V transformers to allow the economical operation of two separate speaker lines (A/B lines) for maximum safety requirements. In the event of a speaker line failure, the redundancy of the speakers and transformers will ensure unaltered operation. The speaker also complies with the British standard BS 5839, Part 8. The 2 x 6 W amplified speaker is equipped with two full-range speakers and two 100 V transformers with 3 power adjustments, each. The powder-coated metal similar to RAL 9010 guarantees long-term stability. For greater security, a 2-pin ceramic connector block, thermal fuses are provided, and the speaker frame is impregnated against moisture. The IP55 protection class protects the speaker from the effects of environmental influences. Simple and quick assembly with spring clamps and short tension distance. The connecting cables can be powered by 4 rubber cable outlets in the firedome. Special paint of the speaker in 4-digit RAL or NCS color available at an additional cost. The fire dome is included in the delivery. This speaker is suitable for ceilings with a thickness between approximately 10 and 45 mm. Our specifications refer mainly to solid ceilings, for ceilings with soft materials, a greater ceiling thickness may be necessary. In addition, stronger cables and other fittings may also result in changes to
