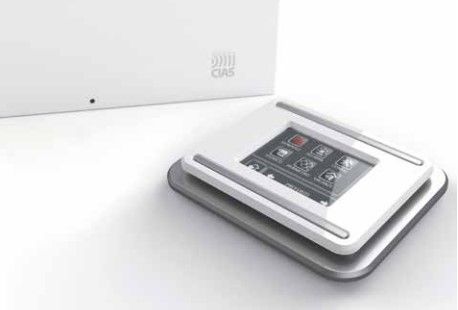

CIAS QUASAR2-128KIT Central control kit with 8 expandable inputs

Central control kit with 8 inputs expandable to 128 including a Start-Touch 3-5” keyboard. The system's self-acquisition function allows QUASAR to automatically collect and direct all the sensors connected to the field with a simple click. The 8 on-board inputs are freely configurable in the ON-OFF type - balanced with single- double or triple balancing and 2 freely programmable relay outputs as well as a relay for direct control of internal and external sirens. It is equipped with 3 RS-485 bus lines for the direct connection of CIAS digital sensors and other brand sensors through SATELLITE-8IN modules. Equipped with a large memory, it can record 4000 events. Housed in the sturdy and spacious PLANET-L metal box - equipped with transformer fixings - for containing the battery and a drilling surface to accommodate up to 4 expansion modules - it adapts to any installation situation. The control unit houses a 1-5A - 13-8Vcc power supply including a battery disconnect. TECHNICAL CHARACTERISTICS- Max number of inputs- 128 - Max number of outputs- 32 - Number of managed keyboards-terminals- 8+7+configurator - Number of inserters- 8 - Max number of telephone dialers- 2 - Manageable areas- 16 - Applications- 16 - Manageable scenarios- 30 - Manageable groups- 16 - Operators- 40 - Event memory- 4000 - BUS 485- 3 lines convertible into IP (TCP-UDP with AS128) through an IP-DOORWAY accessory
