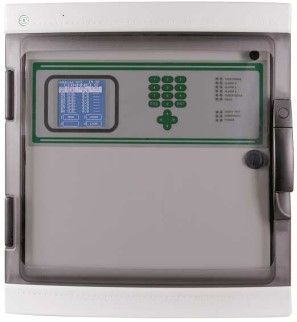

SENSITRON STG/S32I Centrale GALILEO S32I. Alloggiata in box in ABS, con display LCD, gestisce 32 sensori con uscita seriale su loop RS485 ed 8 uscite a bordo.

GALILEO 8 and 32 are high-tech multifunction gas detection control panels, designed to control and monitor up to 8 4-20 mA detectors (GALILEO 8) and up to 32 detectors connected in serial on a loop (GALILEO 32).

The GALILEO 8 and 32 control panels are designed to meet the SIL (Safety Integrity Level) requirements established by the European standard EN50402 on

Functional Safety.

The control panels are designed to be completely redundant and, if correctly installed, meet SIL3 functional safety requirements.

The control panel event memory records all alarms, faults and

user operations. To ensure maximum operational security, a three-level hierarchical user password system has been implemented:

OPERATOR, MAINTENANCE TECHNICIAN and TECHNICIAN.

• ATEX EN 60079-29-1 and SIL 3 (EN50402) certified

• Completely redundant

• 32 detectors connected in cascade on closed loop (G32) or 8 4-20 mA detectors in the control panel (G8) and 8 relay outputs expandable to 16
