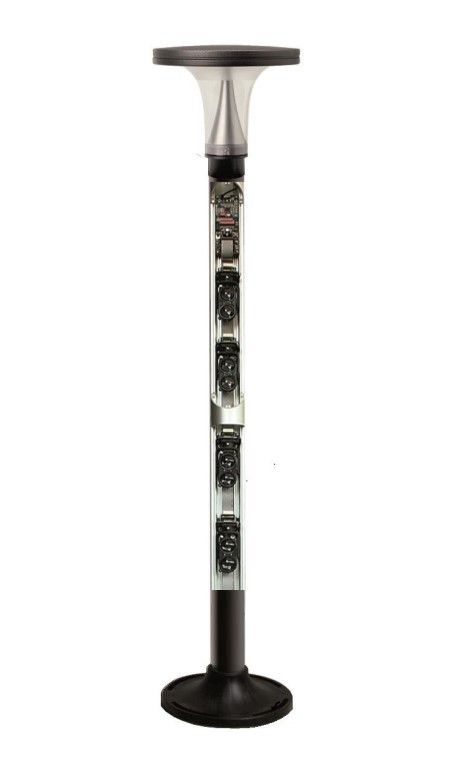

POLITEC MES SMA 9300_220V Column composed of 8 double optical beams 4TX + 4RX H 300 cm

PARVIS is the range of IP65 barriers designed to integrate with lighting systems that combine functionality with aesthetics, to have a highly secure device with a design that goes unnoticed: in fact, the appearance of Parvis is that of a lamp, ideal especially in private gardens, clubs and restaurants with outdoor service. PARVIS is extremely versatile in terms of technical and performance characteristics and it is possible to select particular functions according to the user's needs. In addition to standard internal dimensions and assemblies, we satisfy special requests by creating custom solutions. An outdoor security system designed for residential and industrial applications that integrates with lighting systems. Synchronized active infrared devices create an invisible and aesthetically excellent barrier. The structure that houses them is made of aluminum with a polycarbonate cover equipped with a standard diameter lid for lighting fixtures on the market. The barrier includes a 220V power supply and back-up battery, allowing you to optimize plant design and development times. Outdoor range: 1-100 m Indoor range: 1-200 m Dual-beam optics: with 35 mm and lenses Synchronization: wire - optical Photodevices: Pulsed-type rays with 950 nm wavelength Aiming system: SMA optical-acoustic technology Ray Arrangement: Parallel or Crossed Double spoke configuration: 2-3-4 TX + 2-3-4 RX Radius configuration in the terminal column: 2-3-4 TX/2-3-4 RX Lens adjustment: 180° horizontal 20° vertical IR detection system: OR- AND RANDOM on board or remote Ray exclusion: 1st or 1st and 2nd rays on a board or remotely removable Anti-slip function: configurable ON Board IR intervention time adjustment: 50-500ms with trimmer Circuit power supply: 230 Vac with on-board power supply Circuit absorption: 135mA - 150 mA depending on the number of rays Heater supply: 12Vdc internally powered Heater absorption: 25W - 50W depending on the number of rays Battery housing: 0.8Ah rechargeable 12V lead-acid battery included Operating temperature: -25°C/+ 70°C IR alarm output: Relay with free NC contacts (on RX column) Tamper proof outlet: Tamper column opening fog disqualification output: dedicated OC: NA to GND IR anti-masking output: dedicated OC: NA to GND RS-485 output (only with wire synchronism): Local and remote control with Adebus system Environmental class: 4 Material: Black and transparent IR polycarbonate screen. Extruded profile in anodized reinforced aluminum Profile dimensions LxPxH: 80mm x from 1200 to 4000m
