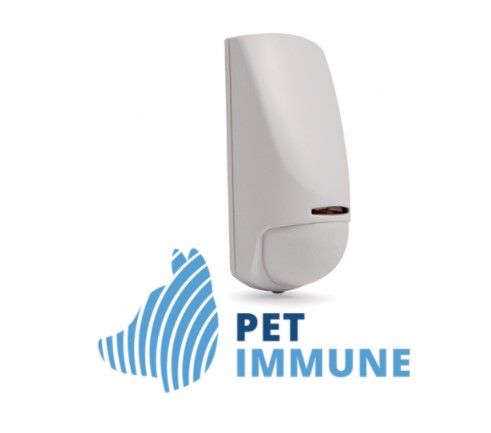

INIM XDTP200HM Combined passive infrared and microwave (X-band) indoor detector - dual digital PIR

Combined passive infrared and microwave (X-band) indoor detector. Digital dual PIR. Immune to animals up to about 25 kg. 12m coverage. Detection angle 80 degrees Digital signal analysis. Pulse counting. Temperature compensation. Anti-blinding. Microwave anti-masking. Excludable LEDs. 3 signal LEDs. Anti-opening and tear-proof protection. AND-OR function. “Smart-OR” function.

The Xline line of dual technology detectors consists of infra-red-microwave detectors that combine a dual pyroelectric element with an X-band microwave sensor and do not generate alarms in the presence of animals weighing up to 25 kg. Digital signal analysis 12m coverage Detection angle 80 degrees Pulse count Temperature compensation Anti-glare temperature compensation Excludable LEDs 3 signal LEDs Anti-opening and tear-proof protection AND/OR function for alarm generation Smart function X-band microwave detection Microwave anti-masking Microwave Operating temperature: 0°C/+50°C Supply voltage: 9V/16V dc Current consumption: 20mA 12V dc Installation height: 2.2m Dimensions: 120x60x44 mm
