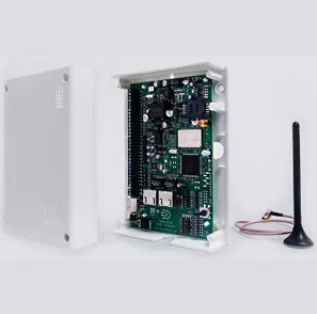

NOTIFIER DAL-COM-21 COMMUNICATOR IP/3G EN 54.21

Communicator IP/3G-4G EN 54.21 in plastic enclosure and antenna. It allows a supervised connection and the transmission of alarms. faults and technical reports to the Control Centers. Dual communication connections. Primary via TCP/IP and backed up via GPRS/3G-4G. DAL-COM-21 can be used both as an external Communicator or as an IP converter in already installed fire alarm systems. Alarm notifications via TCP/IP from DAL-COM-21 can be received from receiving stations equipped with a standard SIA DC09 receiver. DAL-COM-21 includes a serial connection with MODBUS protocol compatible with AM series control units. It is also equipped with eight inputs for the direct connection of relay outputs, for example from conventional fire alarm systems, and four outputs that can be managed remotely. In addition, up to 4 IP cameras can be connected directly. In the “dialer capture” function. DAL-COM-21 can simulate an analog telephone line and receive alarms from existing telephone dialers compatible with SIA or Contact ID and convert and send encrypted alarm messages via TCP/IP protocol to the alarm reception center (s). DAL-COM-21 is also able to send SMS and/or e-mail to up to 10 different accounts and can be programmed to send notifications to up to 10 different Receiving Centers. Each of the alarm inputs. as well as for the transmitter's internal error checks. for example GPRS/3G-4G. Ethernet errors. etc.. is independently programmable in combination with the specific receiver. thus allowing installers to be able to provide separate services for Fire Alarms. System failure reports. Technical alarms. Additional security services are available on request. such as EagleEye APP with images from connected cameras. remote management and alarms directly on a mobile phone. tablet and PC. Supplied complete with plastic case and antenna with 0.5 m antenna cable. The unit can be powered by the existing alarm system given the wide range of accepted voltages. 10-30Vcc. Operating temperature -10 C° + 55 C°. dimensions 170 x 120 x 45.Grade 4/ATS 6 and certification CPR EN 54.21.2006 - E-No. 6.390263 - CPR. 2531-CPR-232.1747.
