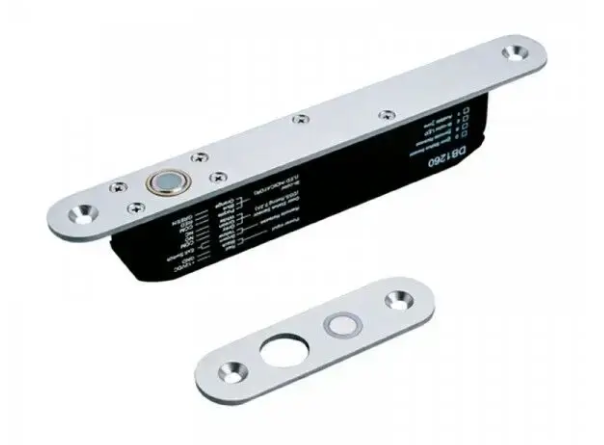

ABTECNO XPR-IGDB1260-LDRET-PTO COMPACT ELECTRIC LOCK WITH DOOR SENSOR RELAY

These models are designed to be installed on thin hinged doors.

They have a thin and light design, 35mm deep.

Mod. IGDB 1260-LDRET PTO

type: Fail-Secure (the lock remains blocked in the event of a power failure)

mounting: built-in

voltage: 12V DC / 24V DC

absorption: Peak 1.15 A / 0.62 A

absorption at rest: 220 mA /120 mA

lock sensor: Relay + LED

door sensor: Relay + LED

Internal timer: 0, 3, 6 and 10 seconds

Protection: Internal lock control circuit and integrated buzzer

"Auto-Lock" function: Yes

Mechanical characteristics:

• Dimensions: 152x23x33mm anodized aluminium

• Front panel: 212x25x3mm Stainless steel

• Piston: 13 x 14.5 mm

• Weight: 0.7 kgf
