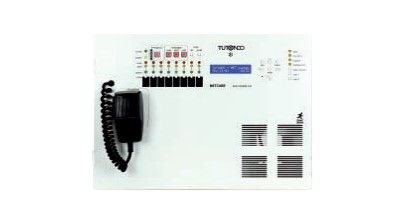

INIM TU METCUBE8Z Compact unit 8 single lines - EN54-16 certification

Compact unit 8 single lines- EN54 pt16 and pt4 certification. 4 monitored analog audio inputs + 8 unmonitored analog audio inputs + 2 audio inputs from digital sources. 16 inch trigger inputs monitored for activating events. 3 60W amplifiers included- for 100V systems.

Compact unit complete with power supply for amplifiers up to 540 W. - Control and visualization system for voice evacuation systems. - Control system up to 8 zones. - Each zone can drive one or more amplifiers. - Can power a single line of speakers or dual lines (A-B) with optional MET8SC board. - Configurable with 60W modules, for the composition of different powers per zone: 60W, 120W, 180W single-line zones. - Double line A/B zone 120W (60+60W), 240W (120+120W), 360W (180+180W). - Total implementable power 540W. - Integrated microphone and pre-recorded emergency messages that can be activated from the front panel with the possibility of sending selective or simultaneous messages/calls over several areas. - 4 monitored analog audio inputs + 8 unmonitored analog audio inputs + 2 audio inputs from digital sources. - 16 monitored “trigger” inputs to activate events (e.g. messages: alert, evacuation, etc.) from the fire control panel or other devices . - The unit includes the COMETA software for configuration and control from a PC/tablet and the Live MT APP for music control. - Digital bus for microphone bases, RS232 ports, Ethernet. - Separate digital bus for zone controls (volume and sources). - Rack unit 7. - EN54-16 and EN54-4 certificate. - 230Vac primary power supply
