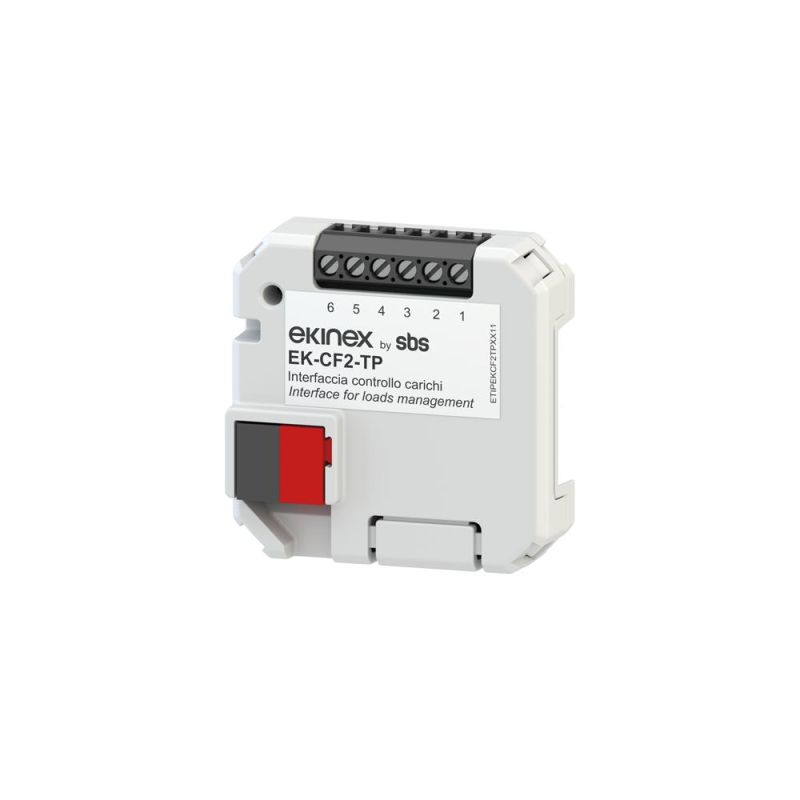

EKINEX EK-CF2-TP Consumption Monitoring and Load Control Interface (including code EK-SMG-35-1)

MT Code: EKN_EK-CF2-TP
Manufacturer Code: EK-CF2-TP
Brand: EKINEX

Description

Consumption monitoring and load control interface (including code EK-SMG-35-1)

The Ekinex® EK-CF2-TP interface for monitoring and controlling loads is a KNX device that can be used:

for measuring the instantaneous current absorbed by (up to) three single-phase electrical circuits or by a three-phase electrical circuit;
for the control of electrical loads with priority disconnection and reconnection.

Current measurement is performed by connecting up to three Ekinex® EK-TA-... current transformers. The device is powered at SELV 30 Vdc voltage via the KNX bus and does not require an auxiliary power supply. Recessed mounting or on 35mm profile rail using the support supplied.
