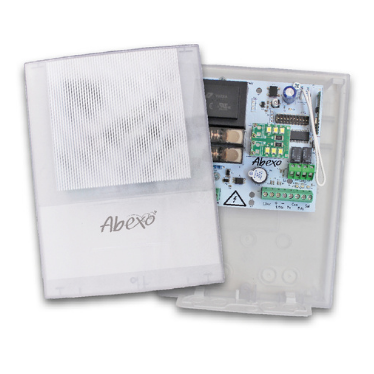

ABTECNO APE-528/1230 CONTROL CENTRAL FOR SHUTTERS WITH INTEGRATED COURTESY LIGHT
- MT Code
- ABT_APE-528/1230
- Manufacturer Code
- APE-528/1230
- Brand
- ABTECNO
Description
- Power supply 230Vac +/-10%
- Motor power 1350W (1HP)
- Working time: adjustable from 0.5 min. at 2 min.
- Pause time: adjustable up to a maximum of 3 minutes
- Courtesy light time: adjustable up to a maximum of 3 minutes
- Safety edge input: 8k2 ohm or NC contact
- Courtesy light output: 12 V
- Flasher output: 12V
- Code combination: 72 million
- Number of transmitters: 25
- Radio code programming: self-learning
- Frequency: 433.92 MHz
- Sensitivity: greater than -100dbm
- Antenna: built-in
- Operating temperature: -10°C, +70°C
- Field of application: standard 50 m - dead man 10 m
Data Sheet
| Feature | Value | Unit of measure |
|---|---|---|
| Codice Produttore | APE-528/1230 | |
| Brand | ABTECNO | |
| Alimentazione | 230 | Vac |
| Potenza motore | 1350 | W |
| Tempo di lavoro | 0,5 - 2 | min |
| Tempo di pausa | 3 | min |
| Tempo luce cortesia | 3 | min |
| Frequenza | 433.92 | Mhz |
| Temperatura di funzionamento | -10°C, +70°C |
