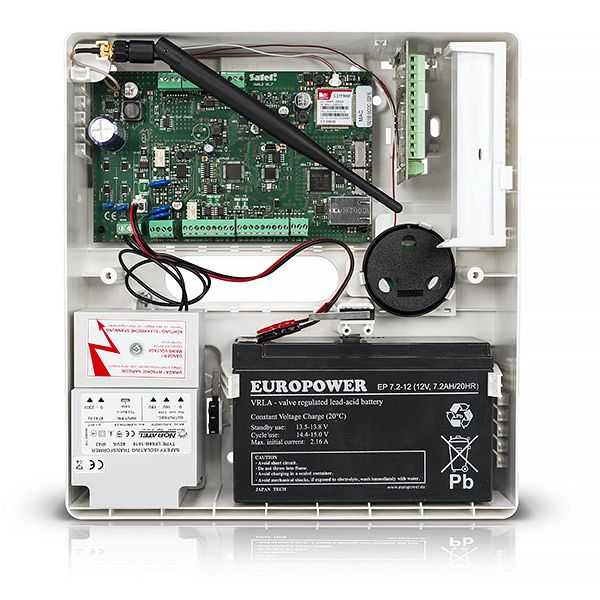

SATEL VERSA Plus Control unit complete with container with double SIM / ETHERNET / PSTN GSM-GPRS modules / voice card with environmental listening
- MT Code
- SAT_VERSA PLUS
- Manufacturer Code
- VERSA Plus
- Brand
- SATEL
Description
Control unit complete with container with double SIM / ETHERNET / PSTN GSM-GPRS modules / voice card with environmental listening (antenna and siren included. maximum 30 inputs and 12 outputs). Requires TR 40 VA transformer
Description:
- EN50131 Grade 2 certification
- maximum number of programmable inputs: 30
- maximum number of programmable outputs: 12
- division of the system into 2 partitions:
- each zone can be assigned to two partitions
4 programmable wired zones on board:
- management of NO and NC type detectors, cable detectors for roller shutters and vibration sensors
- management of end-of-line resistors in EOL and 2EOL configuration
- additional NC type tamper input
5 programmable on-board wired outputs:
- 2 power outputs
- 2 OC (open-collector) type outputs
- 1 relay output
- 3 power outputs
- built-in acoustic signal
system control through:
- INT-TSG, INT-TSH touch screen keyboards
- LCD keyboards
- VERSA-LCDM-WRL, VERSA-KWRL2 wireless keyboards
- proximity reader
- remote controls
the integrated PSTN module allows:
- sending events to monitoring stations (SIA format, ContactID, etc.)
- voice notifications
- remote programming via modem connection
the integrated GSM / GPRS module with dual SIM allows:
- remote management via VERSA CONTROL mobile application via PUSH notifications
- voice notifications and SMS
- email notifications
- sending events to monitoring stations (SIA format, ContactID, etc.)
- remote programming via DLOADX program
the integrated ETHM-1 Plus network card allows:
- remote management via VERSA CONTROL mobile application via PUSH notifications
- email notifications
- sending events to monitoring stations (SIA format, ContactID, etc.)
- remote programming via DLOADX program
integrated voice module:
- Interactive voice menu for remote control with DTMF tone keypad
- message memory of over 13 minutes
- over 4 minutes for 16 telephone notification messages (with message duration up to 16 seconds)
- USB socket for local programming
- memory of 2047 events
ability to manage 30 users and assign to each of them:
- code
- proximity card
- remote control
4 timers for automation of:
- insertions and disconnections
- output control (switching on lights, watering the garden, etc.)
- plug-in terminal block
Data Sheet
| Codice Produttore | VERSA Plus |
|---|---|
| Brand | SATEL |
Download
|
VERSA PLUS IT 1
|
7.0 MB |
