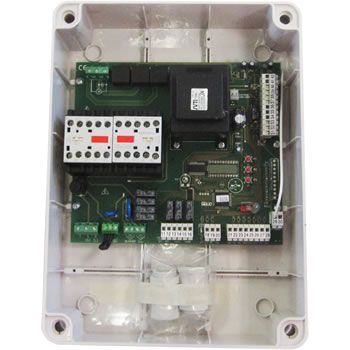

ALLMATIC 12001106 Control unit for three-phase control and operation CT3IND BUTTONS IN BOX

MT Code: ALL_12001106
Manufacturer Code: 12001106
Brand: ALLMATIC

Description

THREE-PHASE CT3IND BUTTONS IN BOX

Control

unit for the control and operation, using remote switches, of industrial automation to a THREE-PHASE motor 50Hz 400 Vac 1.5KW max or SINGLE-PHASE 230 Vac 50Hz 800W max

Main features:

Amperometric sensor on each phase for detecting obstacles
Phaseless verification system (only for three-phase motor).
Motor-saving function that limits the maximum current (current limited to 10A).
Large display and 3 buttons for adjusting parameters.
Integrated radio receiver.
Adjustable obstacle detection.
Self-diagnosis of safety devices.

LED for signalling input status.

Available inputs: open button, close button, step-by-step button, pedestrian button, stop button, shutter when opening and closing, 2 photocells and 2 safety edges (N.C. or 8k2).

Outputs: integrated traffic light, on-board flashing circuit, 230 Vac flashing board, courtesy light, 24 Vac/DC accessory power supply, radio receiver module.

Dimensions (mm) W x D x H = 300 x 220 x 120 BOX
