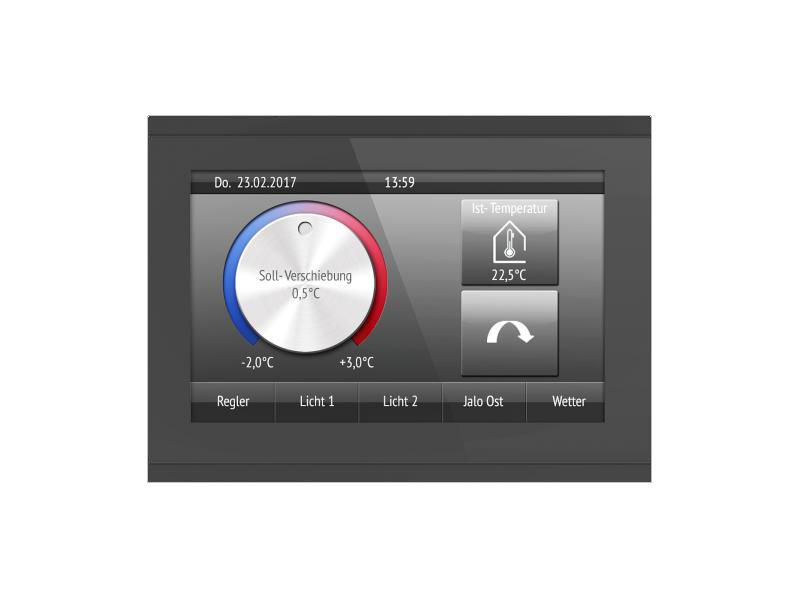

ELSNER 70481 Corlo Touch KNX 5in- black/black KNX touch display

The Corlo Touch KNX 5in display, code 70481, is a control device for home and building automation systems, compatible with the KNX system. This display offers a wide range of functionality thanks to its touch-sensitive glass interface.

Key Features

The Corlo Touch KNX 5in display has a resolution of 800 x 480 pixels on a 5-inch diagonal, ideal for displaying text, images and graphics. The view is optimal with opening angles of -70° to +70° on the x-axis and -60° to +60° on the y-axis.

Control Features

This device can be used as a normal switch, but it also offers control functionality for shading, ventilation, climate control and lighting. There are 5 built-in automatic channels for controlling these functions.

Sensors and Logic

The Corlo Touch KNX 5in includes a proximity sensor for quickly activating the display from standby mode and a brightness sensor for automatically adjusting the display lighting. There are also 4 AND logic gates and 4 OR logic gates, each with 4 inputs, and 16 logic inputs in the form of communication objects.

Other Features

• Scene control (up to 16 scenes)
• Timer and alarm
• 4 inputs for binary contacts or temperature sensors
• Micro SD card slot for storing image data
• Ambient lighting with individually adjustable RGB colors
• Possibility to exchange display icons (library of symbols in the device or customized images from a micro SD card)

Installation and Physical Characteristics

The display is made of a plastic frame and glossy black tempered glass. The frame is built-in (wall installation in a Ø 60 mm junction box) with overall dimensions of about 133 x 97 x 35 mm and mounting depth of about 20 mm. The weight of the display is about 200 grams.

Environmental Conditions

The operation is possible in a temperature range from 0°C to +50°C and a maximum relative humidity of 95%, avoiding condensation.
