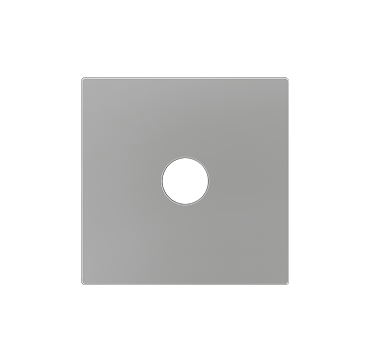

ZENNIO 830002706 ZS55 3.5mm Jack Cover, Silver

The ZENNIO 830002706 product is a specialized device for integration into building automation systems, in particular those that use KNX technology.

Technical characteristics

This device is designed to offer a compact and versatile solution for the control and management of building infrastructure.

Power supply and interface

The device includes a KNX power supply with a maximum current of 320 mA, sufficient to power the KNX bus and any additional consumption. The main power supply is 230 VAC, 50/60 Hz.

Control Functionality

The ZENNIO 830002706 integrates a climate controller with the ability to manage up to 4 independent thermostats, allowing precise and personalized temperature control in different areas of the building.

Logic Module and Multifunction Actuator

The device includes a logic module that allows the configuration of customized scenarios and a multifunction actuator with 12 inputs and 16 outputs (16 A C-Load), which can be configured as individual outputs, curtain channels or fan coil controllers.

Protections and Security

The device is equipped with a reset button and an overload status LED, as well as protections against short circuits and overloads.

Dimensions and Installation

The dimensions of the device are 80 x 90 x 60 mm, occupying 4.5 DIN units. This makes it easy to install on a DIN rail, optimizing the available space.

Use and Applications

The ZENNIO 830002706 is ideal for installation in commercial, residential and industrial buildings where centralized and efficient infrastructure control is required. Its versatility makes it suitable for a wide range of applications, from climate management to light and curtain control.

Examples of Use

• Temperature management in offices and commercial spaces.
• Control of environmental conditions in laboratories and industrial environments.
• Automation of lights and curtains in residential and commercial buildings.
