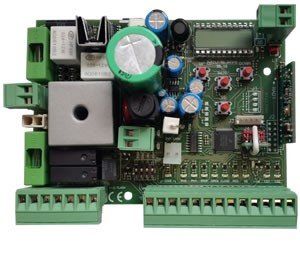

ALLMATIC 12006628 CT BIOS1 24V BT+IB1.M Central Control Board For Sliding Gates

CT BIOS1 24V BT+IB1.M card

Thanks to the multiple functions of the control unit BIOS1 24V you can set your own system in an increasingly personalized way even with sliding gates. It's possible Change speed, sensitivity to obstacles and much more. Microprocessor: the BIOS1 24V control unit it's even smarter. In fact, it is able to automatic memorization of the times of work, making installation the easiest possible, already preset slowdowns and acceleration ramp. Obstacle detection throughout the race, diversified between standard traits and traits of slowdown

Main features: Control unit

• with control of a transmitter via display
.
• Removable memory and terminal blocks.
• Electronic torque adjustment.
• Learning up to 1000 remote controls.
• Function selection via display.
• Self-learning racing.
• Differentiable slowdowns in opening and closing.
• Adjustable obstacle detection.
• Self-diagnosis of safety devices.
• LED for signalling input status.

Available inputs: open button, close button, step-by-step button, pedestrian button, stop button, 2 photocells, safety gate, opening and closing end.

Outputs: on-board flashing circuit, 230 Vac flashing board, courtesy light and 24 Vdc accessory power supply
