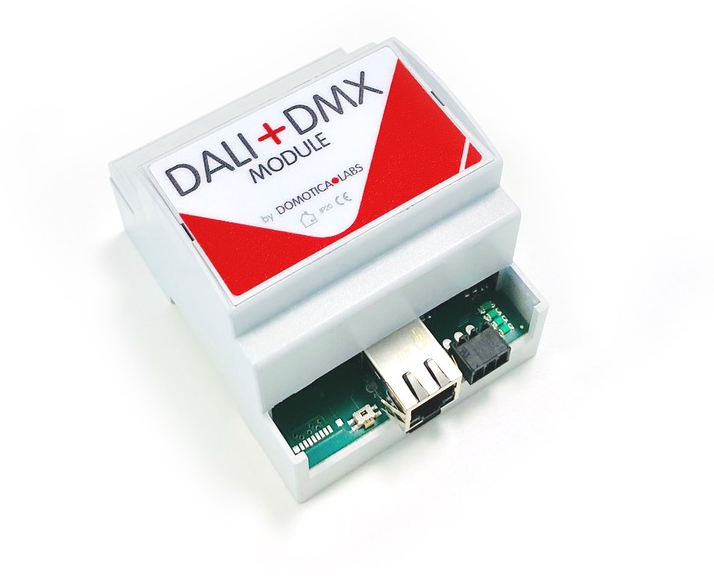

DOMOTICA LABS MODDDX DALI/DMX MODULE – 1 OUT DALI and 1 OUT DMX

DALI/DMX MODULE – 1 OUT DALI and 1 OUT DMX

DALI and/or DMX light control module, even simultaneously - on two connection lines managed in parallel - for IKON SERVER. It allows the simultaneous management of up to 512 independent channels for the control of dimmer and/or RGB lights on the two DALI and DMX technologies, both directly from the supervision via app or browser, and in GATEWAY mode towards other home automation technologies, using, for example, KNX buttons to adjust the intensity or turn on / off the lights. The versatility of the web configuration integrated in IKON SERVER, and of the connection via LAN (even of more than one module, if necessary) make this device a winner in all situations where an intelligent and flexible supervision of lighting fixtures is required, even in the absence of home automation buses such as KNX, MyHOME or similar. The device is equipped with a local command (which can be controlled via a normally open button) which allows it to be used in standalone mode. This function, in addition to representing an additional possibility for the management of the light points, is particularly useful for carrying out a local test of the device and the equipment connected to it, realizing the switching on, off and dimming of the light points in broadcast.
