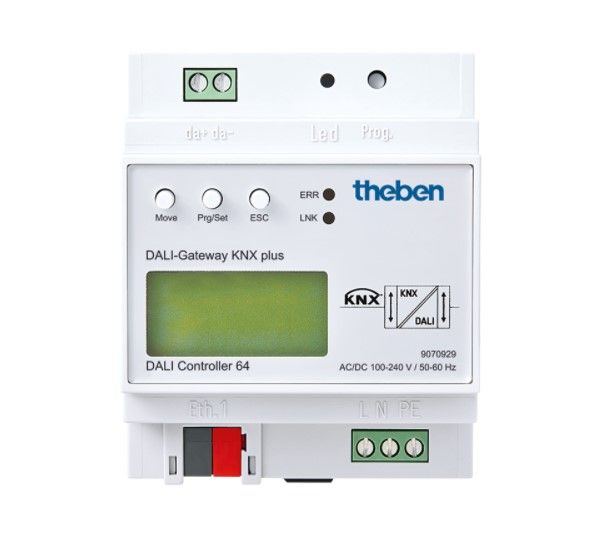

THEBEN 9070929 DALI KNX PLUS INTERFACE

Function Description

• The DALI Gateway KNX acts as an interface between the DALI system and the KNX bus
• A maximum of 64 DALI luminaires can be connected to one DALI output
• Individual control of up to 64 ballasts
• You can perform switching, brightness adjustment and setting a defined value for up to 16 groups
• Operation of emergency lights with a single battery according to EN 62386-202
• Emergency lamp systems with central battery are also supported
• Support of DALI "Device Type 8" (DT8) for controlling light color, brightness and color temperature
• Status and error warnings for viewing
• Scene module for up to 16 different groups
• Effects module for sequential controls
• LC display (2x 12 characters) for managing menus for commissioning and parameterization
• DALI commissioning takes place via the control elements on the luminaire, via the integrated web server or the ETS plug-in
