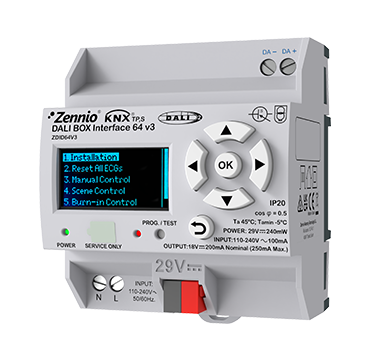

ZENNIO ZDID64V3 DALIBOX Gateway DALI 64, v3

The ZENNIO ZDID64V3, also known as DALI BOX Interface 64 v3, is a KNX-DALI gateway designed for the control and management of lighting systems based on DALI protocol. This device is DALI-2 certified and integrates perfectly into KNX building automation systems.

Key Features

The ZDID64V3 allows you to control up to 64 independent DALI ballasts, which can be grouped into up to 64 groups (16 DALI groups and 48 individual groups). This device is mounted on a DIN rail (4.5 units) and requires an external 230VAC power supply.

Configuration and Control

The device supports general ballast control through universal DALI commands. It offers the possibility of adjusting the light with customizable adjustment curves (logarithmic or linear) and supports color ballasts (type DT8) compatible with RGB, RBW and color temperature functionality.

Advanced Features

• Ballast exchange with automatic address reassignment.
• Automatic shutdown mode if a group stays below a brightness adjustment threshold for a defined period of time.
• Burn-in mode to stabilize the lamp's response and optimize its lifespan.
• Detection and notification of errors, such as power supply errors, short circuits and diagnostic errors of ballasts and groups.
• Support for conversion modules and block function for group control.
• Timed actions: simple timers, flashing sequences and automatic shutdown.
• Customizable scenes and sequences: up to 64 scenes and 16 sequences with up to five actions per sequence.
• Standby mode to reduce power consumption in ballasts by controlling the power supply to the output groups.

Technical Specifications

• Length: 67 mm
• Width: 90 mm
• Height: 79 mm
• Protection class: IP20
• Nominal voltage: 29 V
• Voltage range: 21-31 V
• Power consumption: 0.18 W
• Output current: 0.01 A
• Operating humidity: 5-95% RH (without condensation)
• Bus system: KNX TP (Twisted Pair)
• Connection type: KNX bus terminal + screw terminal
• KNX Secure: Yes

This device offers a wide range of features for the efficient and customizable management of lighting systems, making it a great choice for building automation systems.
