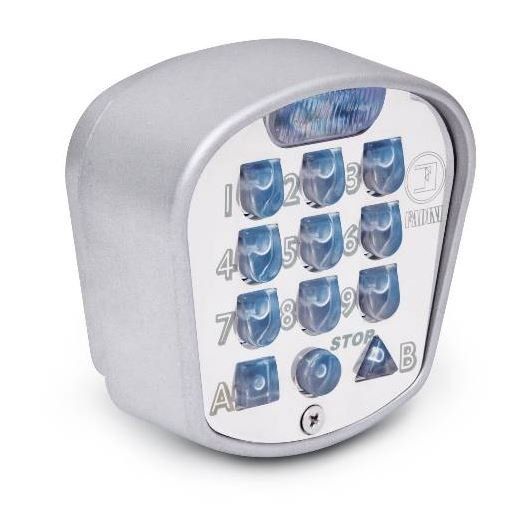

FADINI 611L DGT 61 flush-mounted digital keyboard with cable connection

The DGT 61 digital pushbutton panel is a customized code control accessory designed for the opening and closing of any automated system and also for the management of other external users. DGT 61 is made up of a keyboard (in an anti-corrosion treated aluminum container to be fixed to the wall or recessed) connected by cable (4 wires) to the mother board; the latter is to be installed near the Elpro series electronic programmer, for carry out the electrical connections. The keypad is made up of a series of blue backlit buttons: nine numbers, two outputs A and B and an emergency stop output. There are LEDs on the pushbutton panel that help during the programming and coding phases: green LED (correct procedure) and red LED (incorrect procedure or stop button pressed). A third blue LED, with a fixed light, signals the presence of electrical power and identifies the position of the keyboard at night; with an intermittent light it indicates the execution of more professional timed functions. Once the time set for these functions has elapsed, the blue LED returns to a steady light.
