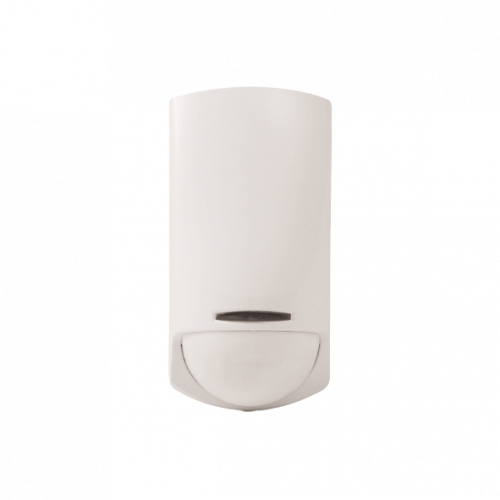

INIM QDT200HM-A Dual technology detector - dual digital PIR X-band-based microwaves - 15m coverage

Dual technology detector. Digital dual PIR. X-band-based microwaves. 15m coverage. Detection angle 100 degrees. Digital signal analysis. Pulse counting. Temperature compensation. Anti-blinding. Microwave anti-masking. 3 detachable warning LEDs. Anti-opening and tear-proof protection. AND/OR function. Smart-OR function. Excludable findings. Sensitivity adjustable and independent sensors. EN50131-2-4 grade 2 certification.

The QDT200HM-A indoor motion sensor of the QTech series has dual infrared and microwave technology capable of covering a detection area of 15 m and advanced digital analysis functions that ensure a high degree of protection against intrusion attempts. The device is equipped with the “AND” and “Smart-OR” functions for generating the alarm: in the first case, the signal is activated when both sensors detect the movement at the same time; in the second case, the signaling is activated when even only one of the two sensors detects prolonged movement. The easy and immediate programming procedure allows you to customize a series of parameters, including the independent configuration of the sensitivity of the infrared and microwave detectors. QDT200HM-A also integrates anti-sabotage systems to protect against opening, tearing and masking actions and is certified to grade 2 according to EN50131-2-4.
