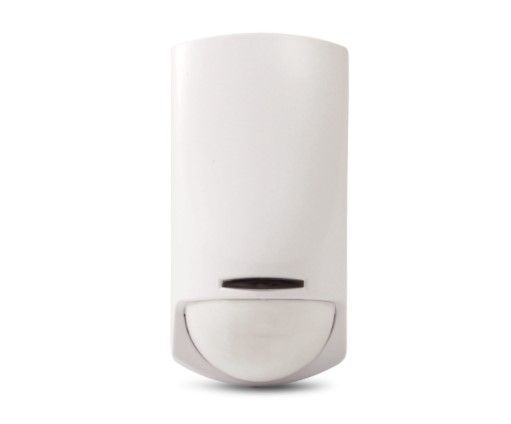

INIM XDT200HM Dual technology detector - dual digital PIR - X-band based microwaves

Dual technology detector. Digital dual PIR. X-band-based microwaves. 15m coverage. Detection angle 100 degrees. Digital signal analysis. Pulse counting. Temperature compensation. Anti-blinding. Microwave anti-masking. Excludable LEDs. 3 signal LEDs. Anti-opening and tear-proof protection. AND-OR function. “Smart-OR” function.

XDT200HM is a dual technology infrared and microwave detection sensor with AND/OR function and anti-masking. It is the most complete wired sensor in the INIM range. It has a range of 15 meters in the detection area and an amplitude of 100°.

MAIN FEATURES
The main characteristics of the XDT200HM detector are: Digital signal analysis - 15m coverage - 100° detection angle - Pulse count - Temperature compensation - Anti-blinding - Excludable LEDs - 3 signal LEDs - Anti-opening and tearing protection - Masking protection - AND/OR function for alarm generation - “Smart-OR” function

TECHNICAL CHARACTERISTICS: Supply voltage from 9 to 16V Nominal voltage 13.8V Consumption at rest 16mA Maximum consumption 20mA Digital dual PIR sensor type, microwave module Detection mode Infrared emission + doppler effect Strip-line antenna type with FET-GaAs oscillator Microwave frequency 10.525GHz Alarm pulses counting from 1 to 4 N.C. intrusion alarm signal output, 28V,100mA max alarm relay pulse duration 5s N.C. tamper signal output, 28V, 100mA max Ambient operating conditions from -10 to +55°C, ≤ 93% Safety Grade 2 Environmental Class II Detection distance (max) 15m Detection angle 100° Installation method wall mounting Installation height 2.2m Dimensions (HxWxD) 120x60x44mm Weight 103g
