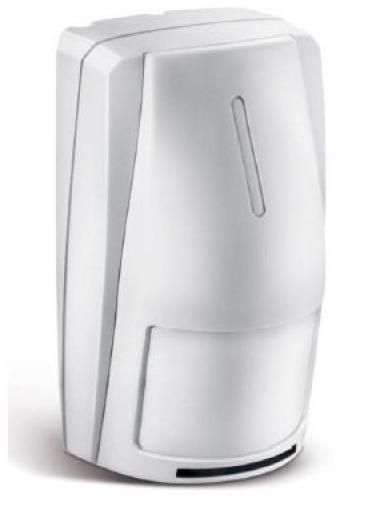

ELKRON 80IM3600113 Dual technology digital volumetric detector with Antimasking

Volumetric detector consisting of an Infrared (IRP) + Microwave (MW) Max. range. 15 m MW coverage: 90° horizontal - 36° vertical IR coverage: 90° Sensitive zones: 18 on 4 floors with look down zones Selectable LED OFF Nominal supply voltage: 12V +/- 3V Absorption at 12 V: 20 mA nom. 34 mA max Microwave sensitivity (MW): adjustable with trimmer MW frequency: 10.525 GHz Emission power (EIRP): 8 dBm Opto relay: 100mA / 24V Tamper: 100 mA / 30V Anti-masking opto relay: 100mA / 24V Operating temperature: - 10°C ÷ +55°C Dimensions: 107 (L) x 61.5 (H) x 43.5 (D) mm Weight: 110 g Joint for wall or ceiling fixing (optional code 80SP1E00113) EN50131 grade 2
