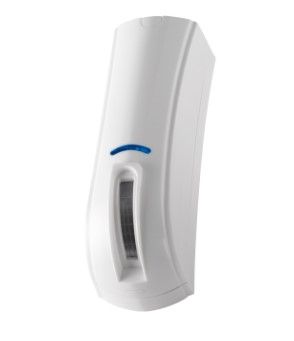

AVS ELECTRONICS 1132116 ONE DT HP Dual Technology Outdoor Curtain Sensor with RS485 BUS

Dual-technology digital curtain sensor with 12 m coverage.

- Dual IR+MW 24Ghz technology with curtain cover

- Max. range 12 m with a maximum opening of 2 m

- Installation height from 1.9 m to 2.2 m

- Anti-blinding with ACTIVE IR and MICROWAVE ANTI-MASKING

- ACCELEROMETER device for reporting the tear

- Digital thermal compensation

- Animal immunity with optional lens filter

- Protective tamper for signaling the opening

- Power supply: 13.8 Vdc

- Dimensions (LxWxH) 44 x 40 x 123 mm

- Universal connection via relay outputs and OC logic

- Mounting: to the wall with supports and 90° adapters supplied as standard.

- RS 485 BUS connection for XTREAM control panels

- Advanced programming functions through XWIN software

- Control and monitoring with oscilloscope function

- Compatibility: XTREAM, XSAT HP

- Degree of protection: IP 54
