Dual technology PIR+MW K-band antimask motion detector on microwave

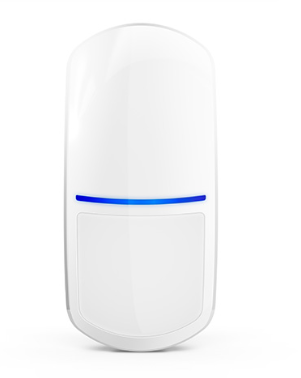

SATEL SLIM-DUALPLUS Dual technology PIR+MW K-band antimask motion detector on microwave

MT Code: SAT_SLIM-DUALPLUS
Manufacturer Code: SLIM-DUALPLUS
Brand: SATEL

Dual technology PIR+MW K-band antimask motion detector on microwave. CLIP function, integrated end-of-line resistors, selectable LED colour, possibility of replacing the quadrangular lens with a CT-CL2 curtain or LR-CL2 long-range lens. Range 15 m x 20 m

SLIM-DUAL-PLUS is the indoor dual technology detector (PIR and microwave in K band 24GHz) of the SLIM series. It has a detection area of 15 m x 20 m with an angle of 90°.

It is equipped with anti-masking technology created via microwave

The standard lens can be replaced with the LR long-range lens (20m x 3.6m) and the CT curtain lens (16m x 2m).

The detector is equipped with integrated 1.1kΩ balancing resistors.

The detector can be equipped with a BRACKET-D bracket (not included), with internal cable routing, which allows you to rotate the detector 35° degrees vertically and 90° horizontally.

Characteristics:

compliant with EN 50131 Grade 2
anti-masking MW
motion detection via infrared sensor (PIR) microwave sensor (MW)
Adjustable detection sensitivity for both technologies
digital motion detection algorithm
digital temperature compensation
digital filter for processing the signals received from the microwave sensor, which guarantees immunity to false alarms caused by the electrical network and discharge lamps (e.g. neon)
wide-angle lens designed specifically for SLIM Line detectors
possibility of replacing the wide-angle lens with a curtain lens (CT-CL2) or a long-range one (LR-CL2)
integrated balancing resistors (2 X 1.1 kΩ)
LED indicator
configurable LED indicator color (4 colors available)
enable/disable LED indicator remotely
supervision of the detection system and the supply voltage
tamper protection against opening of the housing
