Dual technology PIR+MW motion detector in K band with active antimask on IR

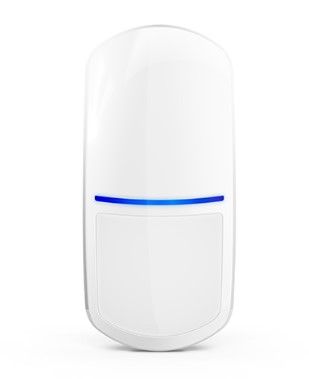

SATEL SLIM-DUAL PRO Dual technology PIR+MW motion detector in K band with active antimask on IR

MT Code: SAT_SLIM-DUAL PRO
Manufacturer Code: SLIM-DUAL PRO
Brand: SATEL

Dual technology PIR+MW motion detector in K band with active antimask on IR. sensitivity adjustment with OPT-1 remote control. BRACKET-D joint included. Range 20 m x 24 m

SLIM-DUAL-PRO is the indoor dual technology detector (PIR and microwave in K band 24GHz) of the SLIM series with active antimask on the IR and EN50131 Grade 3 certification. It has a detection area of 20 m x 24 m with an angle of 90°.

The standard lens can be replaced with the LR long-range lens (28 m x 3.6 m) and the CT curtain lens (22 m x 2 m).

The PRO models are equipped with an active anti-masking function via infrared radiation. Any attempts to deactivate the devices by covering the lenses (for example with tape, paint or clear varnish) will be reported.

SLIM-DUAL-PRO is convenient and practical to install. Opening the housing is quick and simple, without the need to remove the closing screw.

The electronic board can be extracted without acting on the terminals. The wires are fixed to a removable terminal block onto which the electronic board is inserted. The detector has built-in 1.1kΩ, 4.7kΩ and 5.6kΩ balancing resistors.

All adjustments (including LED brightness and color settings) can be performed manually by acting on the electronic board, or via the OPT-1 remote control.

The detector is supplied with a BRACKET-D bracket, with internal cable routing and anti-tear tamper, which allows the detector to be rotated 35° degrees vertically and 90° horizontally.

Characteristics:

compliance with the requirements of EN 50131 Grade 3
motion detection via infrared sensor (PIR) microwave sensor (MW)
Adjustable detection sensitivity for both technologies
Separate test mode of PIR and MW sensors
digital motion detection algorithm
digital temperature compensation
digital filter for processing the signals received from the microwave sensor, which guarantees immunity to false alarms caused by the electrical network and discharge lamps (e.g. neon)
selection of operating mode: basic or advanced
option to enable/disable crawl zone protection
wide-angle lens designed specifically for SLIM Line detectors
possibility of replacing the wide-angle lens with a curtain lens (CT-CL) or a long-range one (LR-CL)
Active IR anti-masking, compliant with EN 50131-2-4 for Grade 3
remote configuration of detector sensitivity via OPT-1 remote control
integrated end-of-line resistors (2 x 1.1 kΩ / 2 x 4.7 kΩ / 2 x 5.6 kΩ)
LED indicator
configurable LED indicator color (7 colors available)
Remote activation/deactivation of the LED indicator
remote configuration mode activation/deactivation
supervision of the detection circuit and the supply voltage
tamper protection against opening the housing and removal from the mounting surface
adjustable wall-ceiling bracket included (BRACKET D), equipped with anti-tampering device
