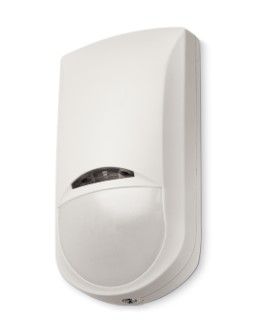

AVS ELECTRONICS 1130135 JET DT AM Dual-technology sensor with anti-masking

Dual-technology sensor with anti-masking with a range of 15 meters

- Range 15 m

- Aspherical Fresnel lens, 90° coverage angle, 7 planes and 41 sectors, sealed optics

- Mirrored look-down lens for anti-slip coverage

- Selectable line balancing resistors for alarm, tamper and masking from 1-2.2-4.7-10 Kohm

- ANTI-BLINDING with active IR

- Thermal compensation

- Pet immunity selectable 0-12-24 kg

- Infrared and microwave active test function with fault reporting

- Automatic security function in case of IR or MW failure

- AND/OR/SECURITY operating logic

- Microwave frequency: 10.525 GHz

- LED activation input for walk test function

- Tamper output

- Alarm output with NC relay

- Anti-blind/fault output with NA relay

- Deactivatable LEDs

- Installation height: standard at 2.20 m - max. 2.70 m

- Absorption 12 mA max.

- 13.8 Vdc power supply

- Environmental conditions: -20 C° + 55 C°

- Dimensions (LxWxH) 65 x 120 x 39 mm

- Certification: IMQ-INCERT EN50131 grade 3 class 2
