NOTIFIER ASF100 DS-1 5-200M LINEAR SMOKE AND FIRE DETECTOR WITH DUSTPROOF ALGORITHM

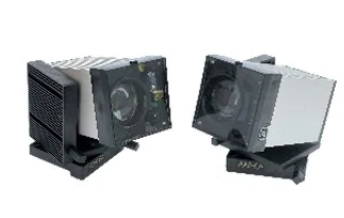

DUST-PROOF Linear Smoke and Fire Detector suitable for operation in industrial environments. where there are process lines with powder production. Maximum coverage for each detector up to 1600m2 according to UNI 9795. Maximum coverage width up to 15 m according to UNI 9795. Detector operating range. min. 5m - max 200m. Requires INT8C interface to be ordered separately. Adjustment of the intensity of the beam. depending on the distance by means of a trimmer. Automatic gain control to compensate for signal loss due to dusting. thanks to a dustproof algorithm. It reveals both bursting and rapidly developing foci (flame). Separate LED for smoke or fire alarm. Easy alignment with portable tool. The receiver and the transmitter need to be interconnected via a relay interface that allows alarm and fault reporting. Operating voltage 24Vcc. Absorption at rest from 110 to 150mA. in alarm from 120 to 160mA. Operating temperature from -20°C to +55°C. Relative humidity up to 95 percent (without condensation). Degree of protection IP 44. The package includes. Transmitter Unit (Tx) and Receiver Unit (Rx) -Pair of die-cast aluminum brackets-Pair of 4-pole connectors complete with cable. CPD certificate in accordance with EN 54 part 12. CE marking according to CPD No. 0786-CPD-20215.
