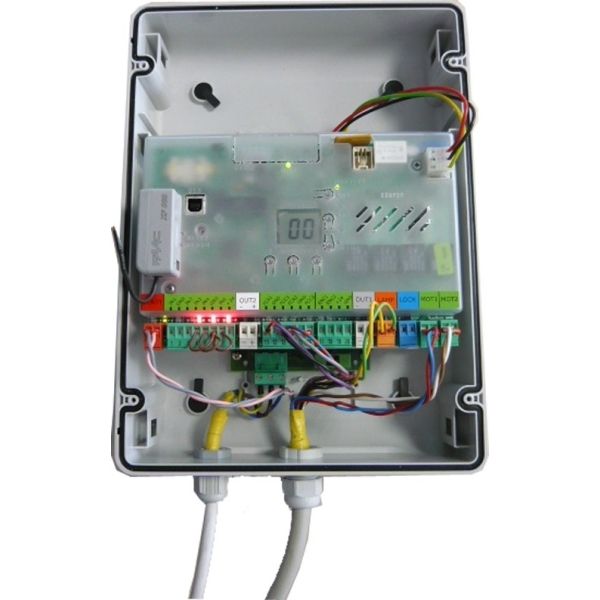

FAAC 790284 E124 ELECTRONIC EQUIPMENT

E124 ELECTRONIC EQUIPMENT

• It is compatible with all receivers (3 pin or 5 pin or external) and all photocells (

TECHNICAL CHARACTERISTICS:

• Network supply voltage: 220-240V~ 50/60 Hz
• Max power: 4 W Stand-by — about 400 W max W Max
• motor power: 7 A Max accessory load:
• 500 mA 24V — 500 mA BUS 2easy Accessory
• power supply voltage: 24V Programming:
• N. 3 buttons (+, -, F) and LCD display, via PC with USB cable Operating logic: Automatic (A),
• Semiautomatic (E), Automatic 1 (A1), Automatic “step by step” (AP), Man present (C), Safety automatic (S), Step-by-step security (SP), Semiautomatic step-by-step (EP), Semiautomatic B (B), Mixed logic (BC), Custom (customizable, programmable by the installer via PC)
• Programmable functions: (*) Logical, pause time A, pause time B, force, speed, slowdown spaces, door delay, windproof, reverse-stroke, soft-touch, opening and closing, cue, slow down, spy lamp, fail-safe, programming bus 2easy devices, request for assistance, safe, charger timer function, battery operation, clock, time-out, pre-flash time, motor type, encoder sensitivity
• Working time: Programmable (from 0 to 10 min) Pause time: Programmable (from 0 to 10 min)
• Motor force adjustment: Programmable on 50 levels Speed adjustment: Programmable on 10
• levels Terminal block inputs:
• BUS 2easy, fully programmable
• inputs via PC (open A, open B, close, priority open, priority close, emergency closing, emergency opening, emergency opening, stop, safe opening, safe opening, security, closing security
