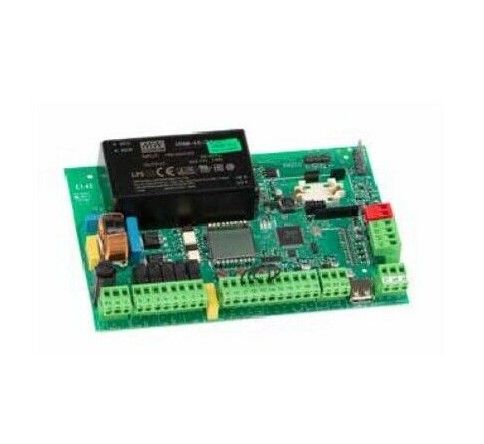

FAAC 790076 E145S ELECTRONIC BOARD

E145S ELECTRONIC BOARD

TECHNICAL CHARACTERISTICS

Network power supply voltage Switching power supply from 90V to 260V 50 (60) Hz

Max power 4W Stand by, 2W with sleep function (programmable by Simply Connect)

Max motor power 800 W Max

accessory load 500 mA 24V - 500 mA BUS 2easy Max load FAAC lock (12V - 24V

) - not FAAC 24V -

500 mA LCD display programming and buttons, using Simply Connect connectivity devices

Status report LCD display and LED Open
terminal block inputs, Open pedestrian door, Stop (closed), BUS 2easy, Security when opening, Safety when closing,
Power supply + Earth, End of opening and closing, Safety coast entry when opening, Safety coast entry when closing, Exits in the terminal block, Blinking terminal block, Motors, 24 V accessory power supply, 2 programmable OUTPUTS
(default
), 2 electric locks, fast connector, XF 433/868 module for decoding OmniDeC,
for DECODER/ MINIDEC/ RP, USB-A, Simply Connect
Protective fuses 1 (10A)
Ambient operating temperature -20°C ÷ +55°C
E145S electronic board can control one or two hinged operators, or a sliding gearmotor, or mixed hinged systems
