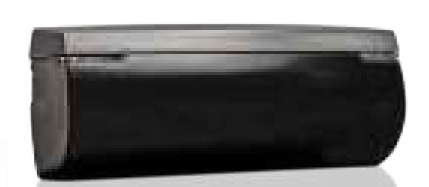

ABTECNO APE-790/4001 EAGLE ARTEK Universal microwave opening detector for automatic doors

Emitted frequency: 24.15 GHz

Detection way: motion

Mounting height: 1.8m to 4m

Max detection area: “wide”: 4x2 m / “narrow”: 2x2.2 m / height: 2.2 m

Tilt angles: from 0° to 90° vertical; from -30° to +30° lateral

Min. speed detection: 5cm/s

Supply voltage**: 12-24V AC ±10% 50-60Hz;

  12-24V DC +30% / -10%*

Temperature range: -20°C to +55°C

Output**: Solid state relay (no polarity)

Max contact voltage: 30 V AC / 42 V DC

Max contact current: 100 mA (resistive)

Degree of protection: IP54 (IEC/EN 60529)

Dimensions: 120mm (W) x 50mm (H) x 50mm (D)
