FAAC 202323 EDC DOOR CONTROLLER LAN/RS485 CARD
- MT Code
- FAA_202323
- Manufacturer Code
- 202323
- Brand
- FAAC

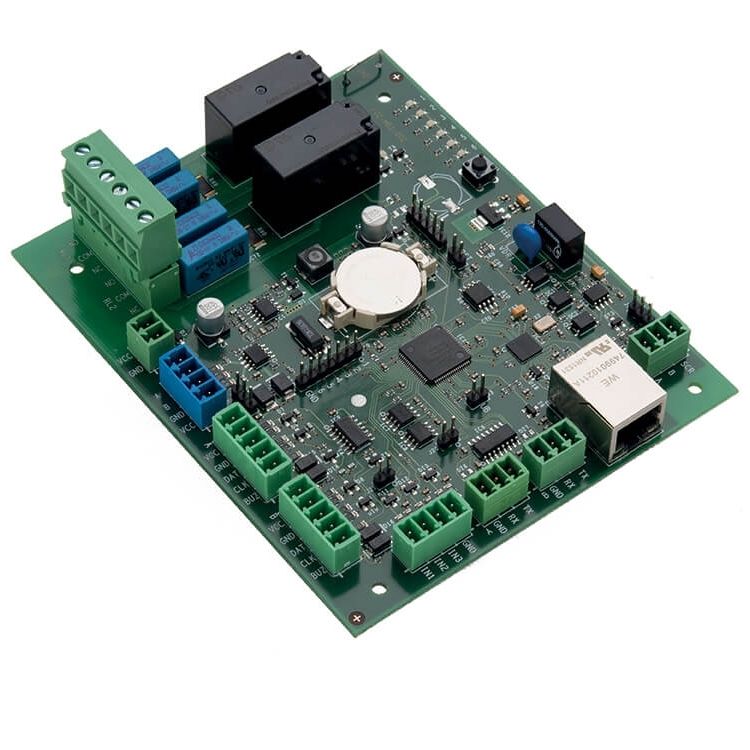

EDC DOOR CONTROLLER LAN/RS485 CARD
Control unit for pedestrian and vehicle gates - Controller for a bidirectional (Entry/Exit), pedestrian or vehicle gate. - The “Door Controller” gate control unit has been designed to be able to create all the connections of the gate (input/output) in a simplified way, optimizing the cabling works. - The Door Controller manages readers
with multiple communication protocolsTECHNICAL CHARACTERISTICS: Inputs: 1 10/100 Mb Ethernet port, 1 RS 485 port, 3 inputs (Port status, exit button, 1 auxiliary), 1 bi-directional bus for 2 readers (also R/W technology), 2 Wiegand/magnetic stripe ports for commercial readers, 2 RS232 ports for commercial readers (e.g. Barcode) Outputs: 2 250vac 10A relays (NA and NC) Events: Max 8,000 (offline) Number of managed users: Max 50,000 (offline) Supply voltage: 11÷15 Vdc Container: Plastic box (accessory) Ambient operating temperature: -20 ÷ +55°C Board size: 132×110 mm Enclosure Dimensions (LxDxH): 204x85x265 mm Battery: For RTC, cards and events
| Feature | Value | Unit of measure |
|---|---|---|
| Codice Produttore | 202323 | |
| Brand | FAAC |
