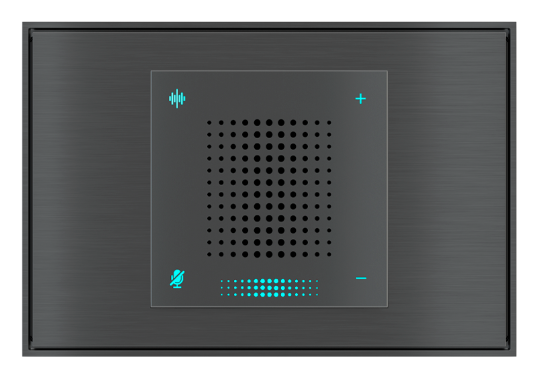

EKINEX EK-VA2-WL-FBM Voice assistant I execute for wall installation

Voice assistant I execute for wall installation

Voice assistant for installation in a wall box. The connection is WiFi only and therefore can be installed in any domestic system, since it does not require a connection to KNX standards

The EK-VA2-WL voice assistant, which contains a WiFi communication module inside, is suitable for mounting on a round or square recessed wall box, equipped with fixing holes with a distance of 60 mm, or for mounting on a standard Italian 3-seater rectangular wall box equipped with fixing holes with a distance of 83.5 mm. Each device is supplied with its relative metal mounting support which, if necessary, can also be ordered separately; a plastic adapter (can be ordered separately), screws for fixing and a 12-24 Vdc power supply complete the supply

Depending on the version, the voice assistant must be completed with a square or rectangular plate with a 60 x 60 mm window and a square or rectangular frame. The plates are available in plastic, aluminum, HT metal or Fenix NTM® in numerous color and finish variants. The frames are available in two formal solutions (Form and Flank) in plastic or aluminum. The 'NF' versions of the voice assistant are mounted without a frame and have a side profile to choose from in black

The voice assistants are connected to a power supply with a voltage of 12-24 Vdc; The configuration and commissioning is carried out using a dedicated app. Through Delégo it is possible to configure the control of home automation equipment of KNX systems
