COOPER CSA FIRE 13150-24-D 50KG - 24VDC ELECTROMAGNETIC SHEET METAL LATCH
- MT Code
- CSA_13150-24-D
- Manufacturer Code
- 13150-24-D
- Brand
- COOPER CSA FIRE
50KG - 24VDC ELECTROMAGNETIC SHEET METAL LATCH

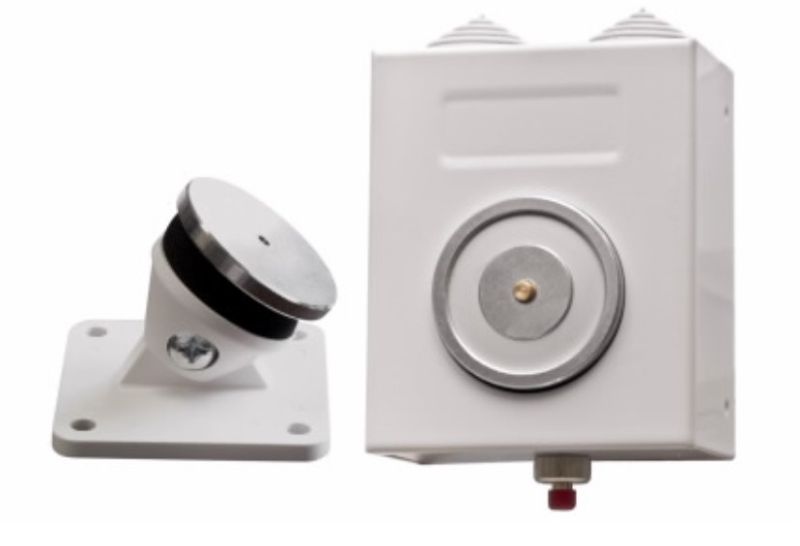

Electromagnetic stop in a metal container for fire doors equipped with an easily identifiable release button. The construction, with a classic design, gives the product a high strength. A built-in spring extractor allows you to overcome residual magnetism, ensuring a quick and reliable release of the door. For the connection, there are two cable channels for tubes up to 16mm and a rear hole with a diameter of 18mm. Backplate supplied as standard. With the appropriate bracket, on request, it is possible to install it on the floor. CPD certification according to UNI EN 1155:2003. Container material: White epoxy coated steel; Core material: Steel; Backplate material: Black ABS support, steel plate; Type of operation: With no power supply; Connection type: With clamps; Operating temperature: -10°C to +55°C; Degree of protection: IP42
Codice Produttore | 13150-24-D |
---|---|
Brand | COOPER CSA FIRE |
