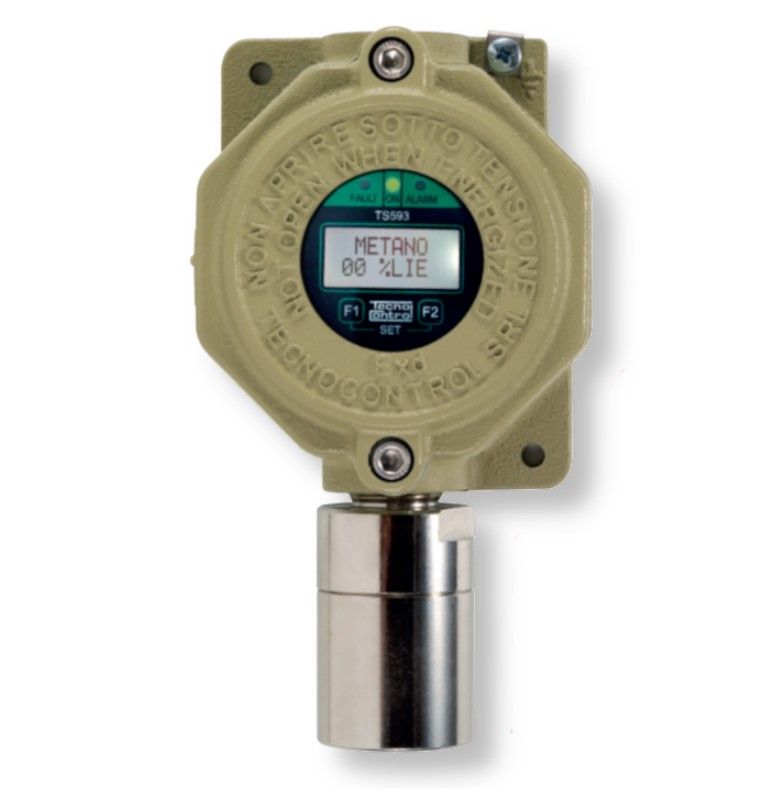

TECNOCONTROL TS593EC-S 4-20mA Exd ATEX electrochemical detector with display for CO

4-20mA Exd ATEX electrochemical detector with display for CO

The latest addition to Tecnocontrol's explosion-proof gas sensors, TS593 is the newest version with DIPLAY.
The display performs the very important function of visualizing in real time the gas concentration existing at the installation site and thanks to this, the operator has an immediate perception of the state of risk, greatly improving his state of safety.
Furthermore, the sensor allows “non-intrusive” calibration using keys that are operated using a magnetic pen: in environments at high risk of explosiveness, it is the ideal way to carry out maintenance because it avoids opening the case, zero and calibration can in fact be carried out from the outside in complete safety and very simply.
The new series of sensors is made of explosion-proof cases that make the range ATEX CESI 03 ATEX 323X certified and marked II 2 G Ex db IIC T6 Gb, therefore certified to the standards EN60079-0, EN60079-1, with a degree of IP65 protection.

* Available for Flammable, Toxic and Oxygen
gases* Equipped with a sensitive element: Pellistor, Electrochemical, Infrared
* Available with 4-20mA output* Real-time indication of gas concentration* 8x2 backlit LCD
display* Non-intrusive calibration and zero with a
magnetic pen * Automatic recovery of zero drift
* Multilingual menu

All models are equipped with:
* Field-replaceable sensor cartridge * Cartridges originally pre-calibrated
* Automatic zero in air simplified through the “F1" and “F2" keys
* Simplified automatic calibration using the “F1" and “F2"
buttons* Made with 2 microprocessors * Polarized connection clamps
* Case II 2 G Ex db IIC T6 Gb
* CESI 03 ATEX 323 X Certification

Power supply: 12-24Vcc (-10/ +15%) - 12-24Vdc (-10/ +15%)
Absorption:
2-3W Outputs: No. 1 4-20mA Linear Polarized plug-in terminals
