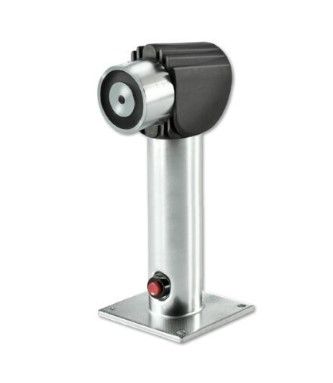

ARITECH FIRE FE260-325 Electromagnet for floor or wall mounting with 325mm adjustable bracket

Electromagnet for floor or wall mounting with 325mm adjustable bracket. Complete with fixed backplate and unlock button. 24Vcc power supply with a holding force of 400N and absorption of 1.6 W. IP42 protection. EN1155 Certificate

General universal
electromagnet for fireproof doors, wall or floor mounting, tube with adjustable base that has a radius of action of 325 mm when used with a 180° configuration and 300 mm if used with a 90° configuration. It has a holding force of 400 N and has an unlock button. 24V power supply, diode protection circuit, supplied complete with adjustable counterplate

construction The magnet
is constructed with a printed coil and a built-in spring extractor, the degree of protection obtained is IP54. The protection diodes are integrated directly into the coil block

position and attachment The adjustable
base of the FE260-325 electromagnet allows two mounting options. The first one is with a 180° configuration, which is normally used when the electromagnet is mounted on the wall. In this configuration, the magnet is located parallel and at the beginning of the tube. The second one has a 90° configuration, which is normally used when the electromagnet is mounted on the floor. In this configuration, the magnet is located on the “" side "” of the tube, as shown in the figure. In order to also allow greater flexibility, the tube can be cut to reduce the distance and adapt it to the installation needs

Installation
For simple and practical installations, the electromagnet is supplied complete with screw clamps. The case is conveniently arranged, with a standard format for quick assembly. The magnet is equipped with an adjustable backplate that offers a wide

Compliance The FE230-325 electromagnet fully complies with EN1155 standards.
