104570 FAAC 390 230V ELECTROMECHANICAL MOTOR ACTUATOR

104570 FAAC 390 230V ELECTROMECHANICAL MOTOR ACTUATOR

MT Code
FAA_104570
Manufacturer Code
104570
Brand
FAAC
FAAC
Description

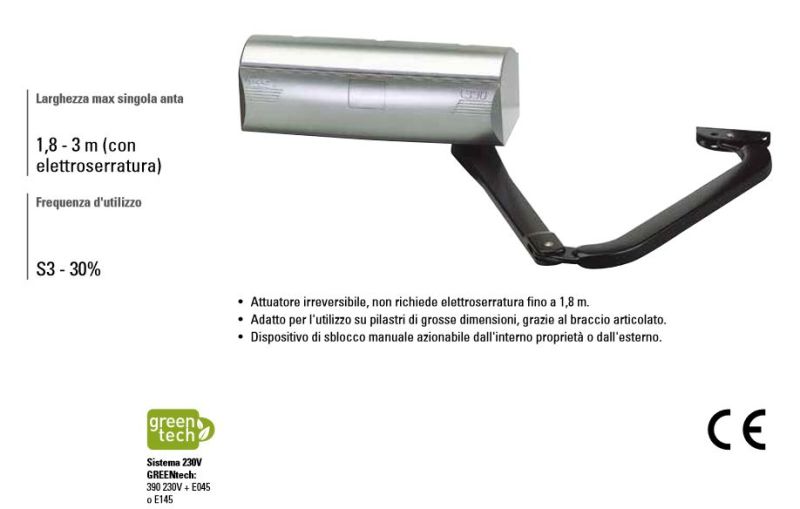

FAAC 390 230V ELECTROMECHANICAL MOTOR ACTUATOR

230V electromechanical articulated arm actuator - Maximum width of a single leaf: 1.8 - 3 m (with electric lock) - Frequency of use: S3 - 30%

Irreversible actuator, does not require an electric lock of up to 1.8 m. - Suitable for use on large pillars, thanks to the articulated arm. - Manual release device that can be operated from inside the property or from the outside.

390 230V includes: an electromechanical operator, installation accessories, an 8µF 400V starting capacitor, an unlocking key.

TECHNICAL CHARACTERISTICS: Network supply voltage: 220-240V~ 50/60 Hz Electric motor: Single-phase asynchronous Max power: 280 W Max torque: 250 Nm (*) Max angular speed: 8 °/s (*) Maximum door opening angle: 120° Ambient operating temperature: -20°C ÷ +55°C Heat protection: 140°C Degree of protection: IP44 Weight: 11.5 Kg Frequency of use: S3 — 30% Max width: 1.8 m (3 m with electric lock) Dimensions (LxDxH): 412 x 133 x 134 mm Electronic equipment: No Compressed

Data Sheet
Codice a barre 8055195000962
Codice Produttore 104570
Brand FAAC
