FAAC 104577 24V 391 ELECTROMECHANICAL ARTICULATED ARM ACTUATOR

24V 391 ELECTROMECHANICAL ARTICULATED ARM ACTUATOR

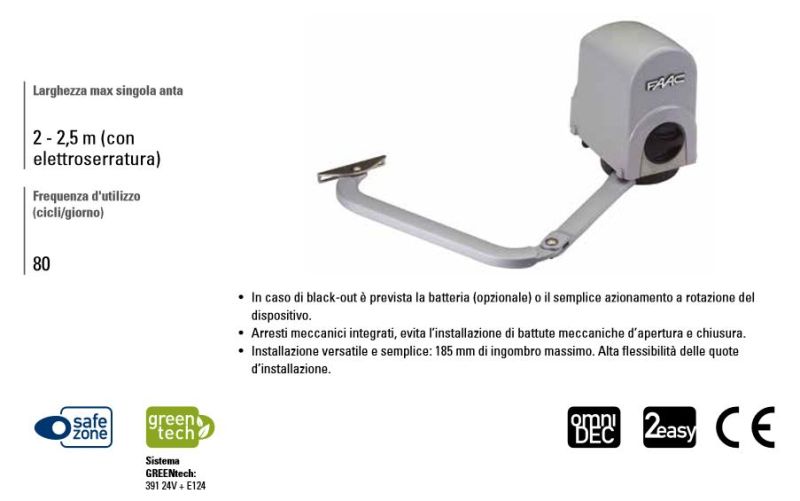

24V electromechanical articulated arm actuator

Maximum width of a single door: 2 - 2.5 m (with electric lock) - Frequency of use (cycles/day): 80

In the event of a blackout, the battery (optional) or the simple rotational operation of the device is provided. - Integrated mechanical stops, avoid the installation of mechanical opening and closing stops. - Versatile and simple installation: 185 mm of maximum dimensions. High flexibility of installation fees.

391 E includes: an electromechanical operator with electronic board and built-in transformer, an articulated arm, an unlocking key. 391 includes: an electromechanical operator, an articulated arm, an unlocking key.

TECHNICAL CHARACTERISTICS: Network supply voltage: 220-240V~ 50/60 Hz Electric motor: With 24V brushes Max power: 40 W Max torque: 250 Nm Max angular speed: 13 °/s Maximum leaf weight: See graphic A Maximum door opening angle: 120° Operating ambient temperature: -20 °C ÷ +55 °C Degree of protection: IP44 Weight: 7 Kg Frequency of use: 80 cycles/day Maximum door width: 2 m (2.5 m with electric lock) Dimensions (LxDxH): 185 x 260 x 310 mm Electronic equipment: Not included
