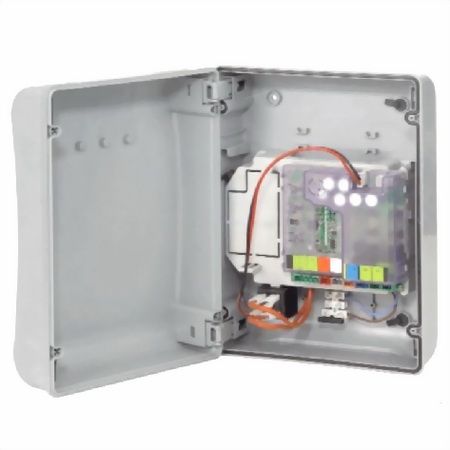

FAAC 790286 ELECTRONIC EQUIPMENT E024 S

E024 S ELECTRONIC EQUIPMENT

• Thanks to the new 2easy and OmniDEC technologies, it is compatible with the XF 433/XF 868 quick-connect module (connector arrangement), external receivers and with the XP 15B and XP 20B D photocells (“BUS” connection).

TECHNICAL CHARACTERISTICS:

• Network supply voltage: 220-240V~ 50/60 Hz
• Max power: 4 W Max motor power: 150 W
• x 2 Max
• accessory load: 250 mA — 400 mA BUS 2easy
• Programming: Programming with buttons
• Operating logic: A, E, AP, EP, A1, B, C
• Programmable functions: (*) Logic (A, E, AP, EP, A1, B, C), Speed (high/low) *, Pause time, Door 2 closing
• time
(time-out): 5 minutes (fixed)
• Pause time: Variable depending on learning (max 10 min)
• Terminal block inputs: Open A, Open B, Stop, BUS (I/O) Terminal block outputs: Motors,
• Blinkers, Accessory power supply, Electric lock, Service light contact (90 sec fixed)
• Quick connector: Battery supply, XF 433 or XF 868 Module Integrated radio coding: DS, SLH, RC,
• LC (max 250 channels) Protection fuses:
F1 = self-resetting
• — F2 = T2A-250V~ Ambient operating temperature: -20°C +55°C
