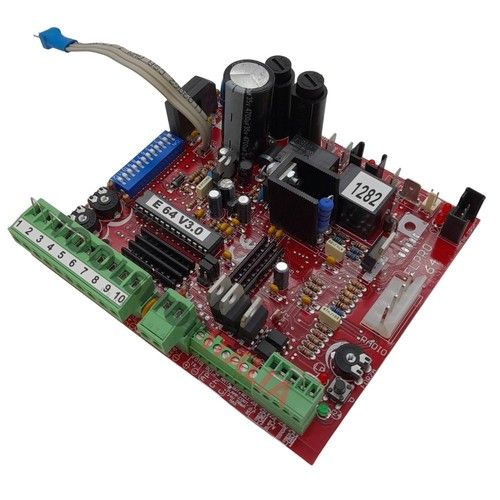

FADINI 680L ELPRO 64 command programmer for JUNIOR 624

FADINI 680L ELPRO 64 command programmer for JUNIOR 624

MT Code
FDN_680L
Manufacturer Code
680L
Brand
FADINI
FADINI
Description

MAIN FUNCTIONS

Simplified programming with just one button: travel management with self-learning, slowdowns, reversal upon impact with an obstacle, predisposition for a sliding second (master/slave), electronic brake. Green/red diagnostic LEDs for easy evaluation of the automation status. Possibility of connecting two 2.6 Ah - 12 V batteries. Photocell self-test (DSA), safety edge self-test (DACS), logic system (RT DATA). Operating temperature -20 °C +55 °C.

TECHNICAL DATA

  • Board power supply 1PH (Vac - Hz) 230 - 50
  • Max motor power (W) 200
  • Courtesy light output (Vdc - mA) 24 - 50
  • Photocell/selector/radio receiver output (Vdc - mA) 24 - 500
  • Signal light output (Vdc - W) 24 - 1
  • Output for DSA control (Vdc - mA) 24 - 150
  • Flashing output (Vdc - W | Vac - W) 24 - 15
  • Pause time (s) 1 - 120
  • Pedestrian opening time (min) max 3
Data Sheet
Codice Produttore 680L
Brand FADINI
