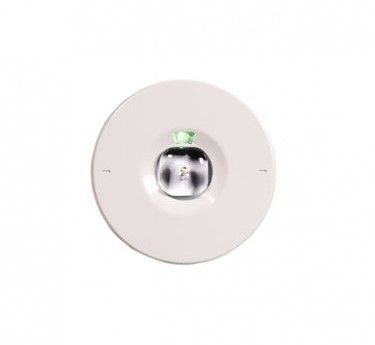

INIM FIRE SPBA240140 Emergency lighting spotlight with built-in bus supervision SPOTLED Series
- MT Code
- INM_SPBA240140
- Manufacturer Code
- SPBA240140
- Brand
- INIM FIRE
Emergency lighting spotlight with built-in bus supervision SPOTLED Series - equipped with symmetric and asymmetric lens. Flux (lm) (SE) 300 (SA) 220. 3-2V 1-5Ah LiFePO4 battery. Duration 1h. Permanent (SA). IP40.
Technical Specifications:
Recessed
installation, false ceiling -
220/230Vac power supply, 50-60Hz - 3.2V
LiFePO4 battery - Insulation class
II -
White color RAL9003 -
LED light source -
5700K color temperature - Ultrasonically welded
polycarbonate screen - Additional information Dedicated clamp for the inhibition function Dedicated
clamp for the sleep mode function - Degree of protection IP40 - Degree of protection
IK07 - Operating temperature
from 0° to 40°C - Complies with EN 55015, EN 60598-1, EN 60598-2-22,
EN 61000-3-2, EN 61000-3-3, EN 61347-1, EN 61347-2-7,
EN 61547, EN 62471
| Feature | Value | Unit of measure |
|---|---|---|
| Codice Produttore | SPBA240140 | |
| Brand | INIM FIRE |
