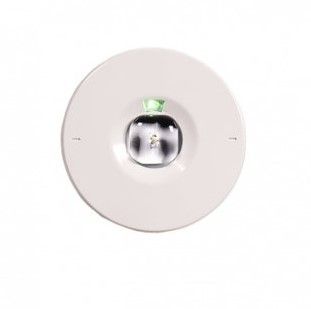

INIM FIRE SPBA240340 Emergency lighting spotlight with built-in bus supervision SPOTLED Series
- MT Code
- INM_SPBA240340
- Manufacturer Code
- SPBA240340
- Brand
- INIM FIRE
Emergency lighting spotlight with built-in bus supervision SPOTLED Series - equipped with symmetric and asymmetric lens. Flux (lm) (SE) 300 (SA) 220. 2 3-2V LiFePO4 batteries at 1-5Ah. Duration 3h. Permanent (SA). IP40.
Technical specifications:
Recessed installation, false ceiling -
220/230Vac power supply, 50-60Hz - 3.2V
LiFePO4 battery - Insulation class
II -
White color RAL9003 -
LED light source -
5700K color temperature - Ultrasonically welded
polycarbonate screen - Additional information Dedicated clamp for the inhibition function - Dedicated
clamp for the sleep mode function - Degree of protection IP40 Degree of protection IK07 -
Operating temperature
from 0° to 40°C - Complies with EN 55015, EN 60598-1,
EN 60598-2-22, EN 61000-3-2, EN 61000-3-3, EN 61347-1, EN
61347-2-7, EN 61547, EN 62471
| Feature | Value | Unit of measure |
|---|---|---|
| Codice Produttore | SPBA240340 | |
| Brand | INIM FIRE |
