SENSITRON S2602EN ETHANE detector. 4-20 mA. 0-100% LFL
- MT Code
- SNS_S2602EN
- Manufacturer Code
- S2602EN
- Brand
- SENSITRON
Description

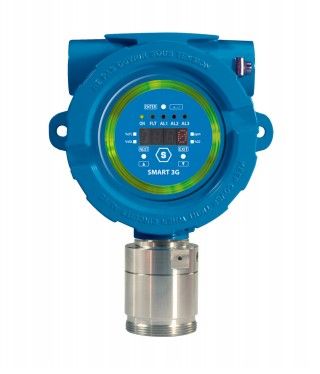

The SMART3G-D2 gas detector is designed to meet industrial requirements;
the enclosure is explosion proof and can be installed in ATEX Zone 1 and, when
equipped with dust adapter, in Zone 21.
The sensing element is placed in the stainless steel head with a 48 mm diameter.
The infrared sensors employed for the flammable and refrigerant gas detection are
poison free, with high accuracy and a long lifetime.
The gas detector has a 12-24 Vdc power supply and a standard 4-20 mA 3-wires
output and three relays. Optionally, the SMART3G-D2 can be equipped with serial
RS485 communication.
The aluminium enclosure has dimensions 145 x 187 x 108 mm. The enclosure has
3 cable entries 3/4” NPT threaded. The SMART3G-D2 features a 7-segment display
for real-time concentration visualization and Hall effect sensors for non-intrusive
field calibration
Data Sheet
| Codice Produttore | S2602EN |
|---|---|
| Brand | SENSITRON |
