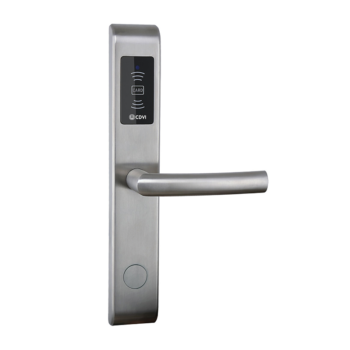

CDVI LM120CR Autonomous Electronic Handle with MIFARE badge reader
- MT Code
- CDV_LM120CR
- Manufacturer Code
- LM120CR
- Brand
- CDVI
Description
The LM120CR is an electronic handle for managing access in any environment. It is mainly used in Hotels and Bed & Breakfasts. Its main task is to verify the data on the badge issued at the reception upon arrival, (date and time of arrival and date and time of end of stay and room number). If all these data match, the handle unlocks and allows the guest to enter the room. The badges are programmed with software and HRFM reader/writer.
Technical Features
LM120CR in 304 Satin Stainless Steel
Mounting on any European standard lock Quick and easy
replacement of the old mechanical handle
Dimensions Handle Center and
Standard Cylinder 85mm (optional 70 and 72mm) Hidden or visible
cylinder Elegant and modern
design Automatic badge presence
detection
Operation with software or in autonomous mode
Ideal for Hotels, Offices, Schools, Hospitals, Residences, Public Administrations, Meeting Rooms, Shopping Centers
MIFARE reader 13.56Mhz Mechanical
Cylinder 4 Standard AAA Alkaline
batteries,
autonomy 18 months under
normal conditions (6000 Openings)
Signals: Light and Audio
Recordings last 200 Events Light
Warning for battery replacement signal Red and Blue status
LED Standby consumption: 12 uA
Operating
absorption: 300 mA Operating
Temperature: -20°C/+60°C
Data Sheet
Codice Produttore | LM120CR |
---|---|
Brand | CDVI |
